TRANSPORT CHAINS / SYSTEMS
PIN BAR CARRIERS
PIN LINKS
STENTER CLIPS
PIN - CLIPS ( CLIP COMBINED )

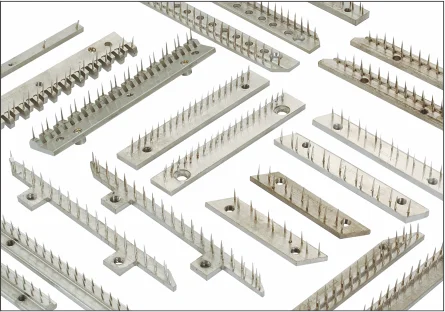

PIN PLATE / PIN BARS
OPENERS / CLOSERS FOR STENTER
CLIPS

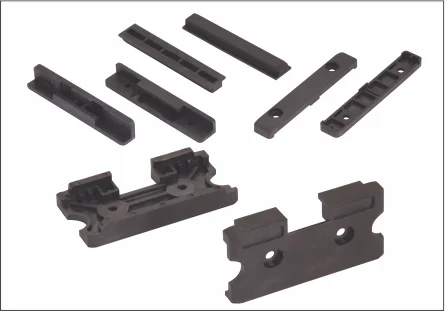

SLIDE RAILS, SLIDE PIECES, SLIDE
BLOCKS
SPARES FOR OVERFEED SYSTEMS

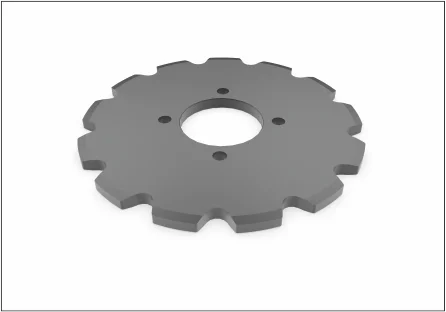

SPROCKET WHEELS FOR DRIVE &
RETURN AND HUBS.
MONORAILS, WIDTH ADJUSTMENT
SCREWS & NUTS
TIMING & DRIVE BELTS

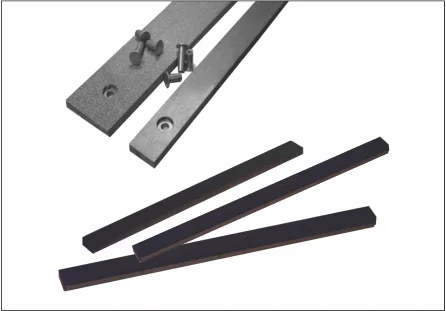

HIGH TEMP. GRAPHITED/
CARBON SLIDE RAILS

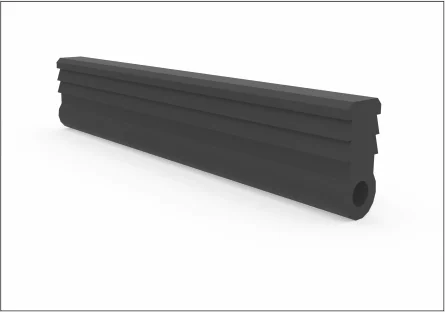

CHAMBER DOORS & DOOR
SEALINGS
ROLLERS & RUBBER SLEEVED
EXPANDERS
ROLL COVERINGS, TAKE UP STRIPS,
ANTI SLIP TAPES, FILLERS OF
VARIOUS STYLES SIZES.
PNEUMATIC CLOTH GUIDERS EQ. TO
E+L KF2020 & SPARES, & WELL
ACCEPTED CLOTH GUIDERS,
UNCURLERS, WEB GUIDING
EQUIPMENTS

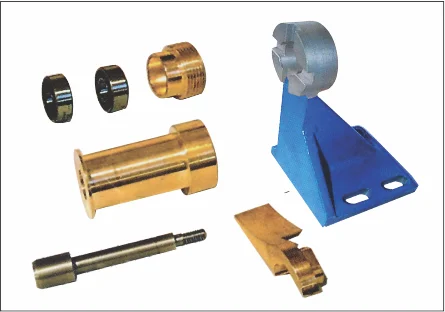

ALL STANDARD & GENERAL
RECOMMENDED SPARES &
EQUIPMENTS OF MECHANICAL
REQUIRED

SUITABLE FOR TYPE

BRUCKNER

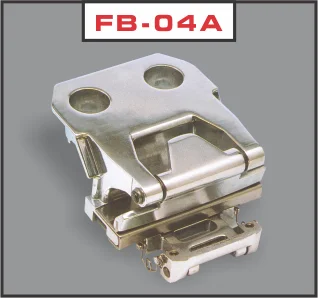

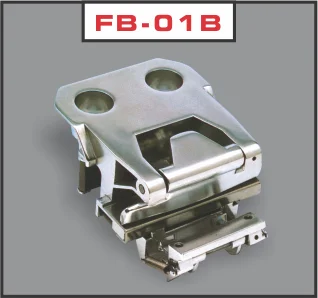

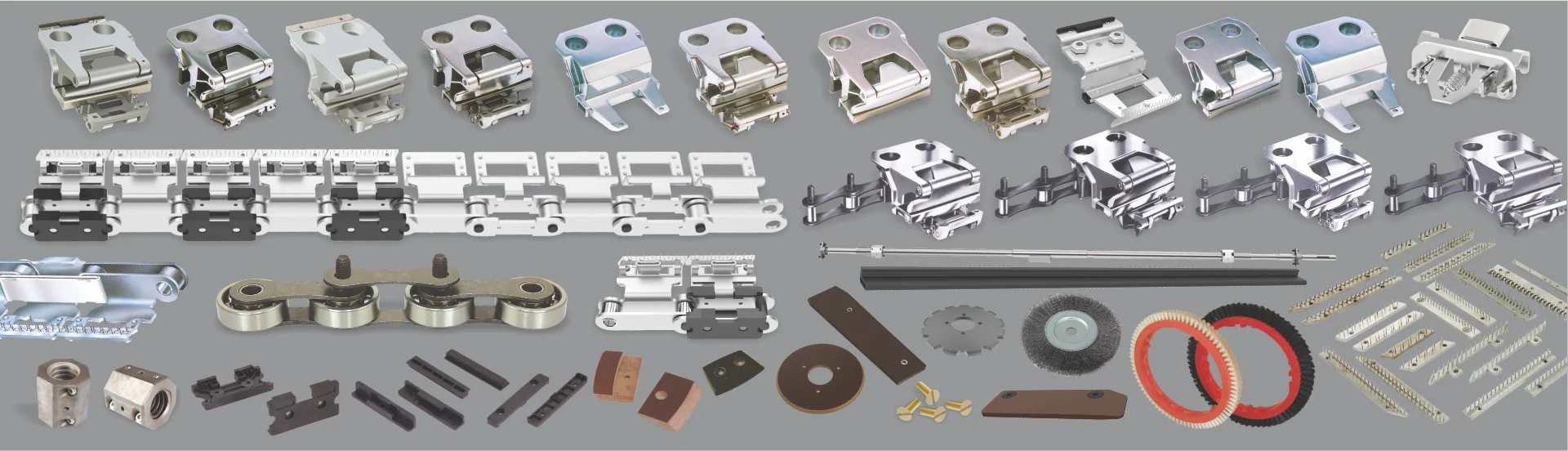

STENTER CLIPS &
CHAIN CLIP ASSEMBELIES

SUITABLE FOR TYPE:

BRUCKNER

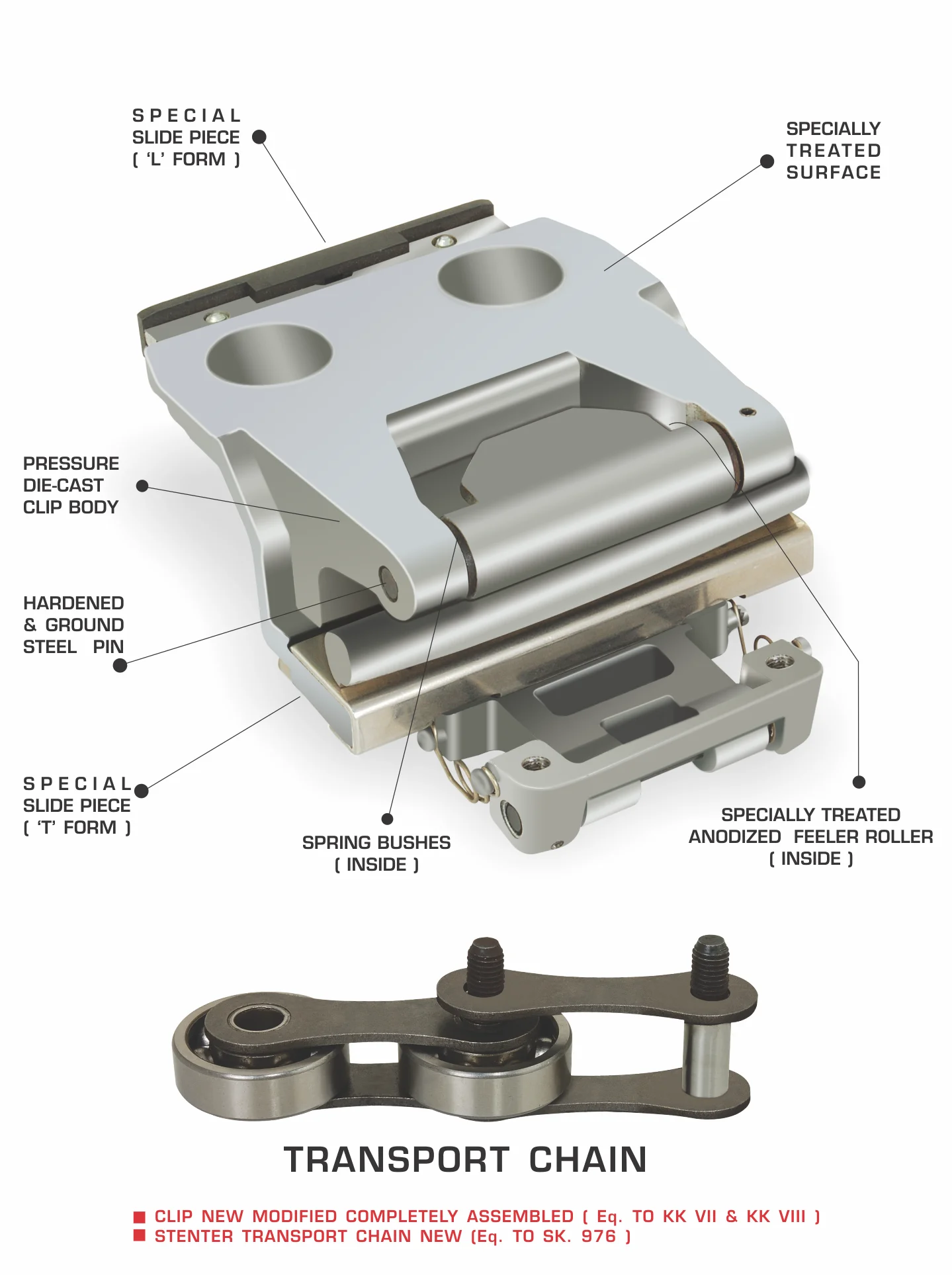

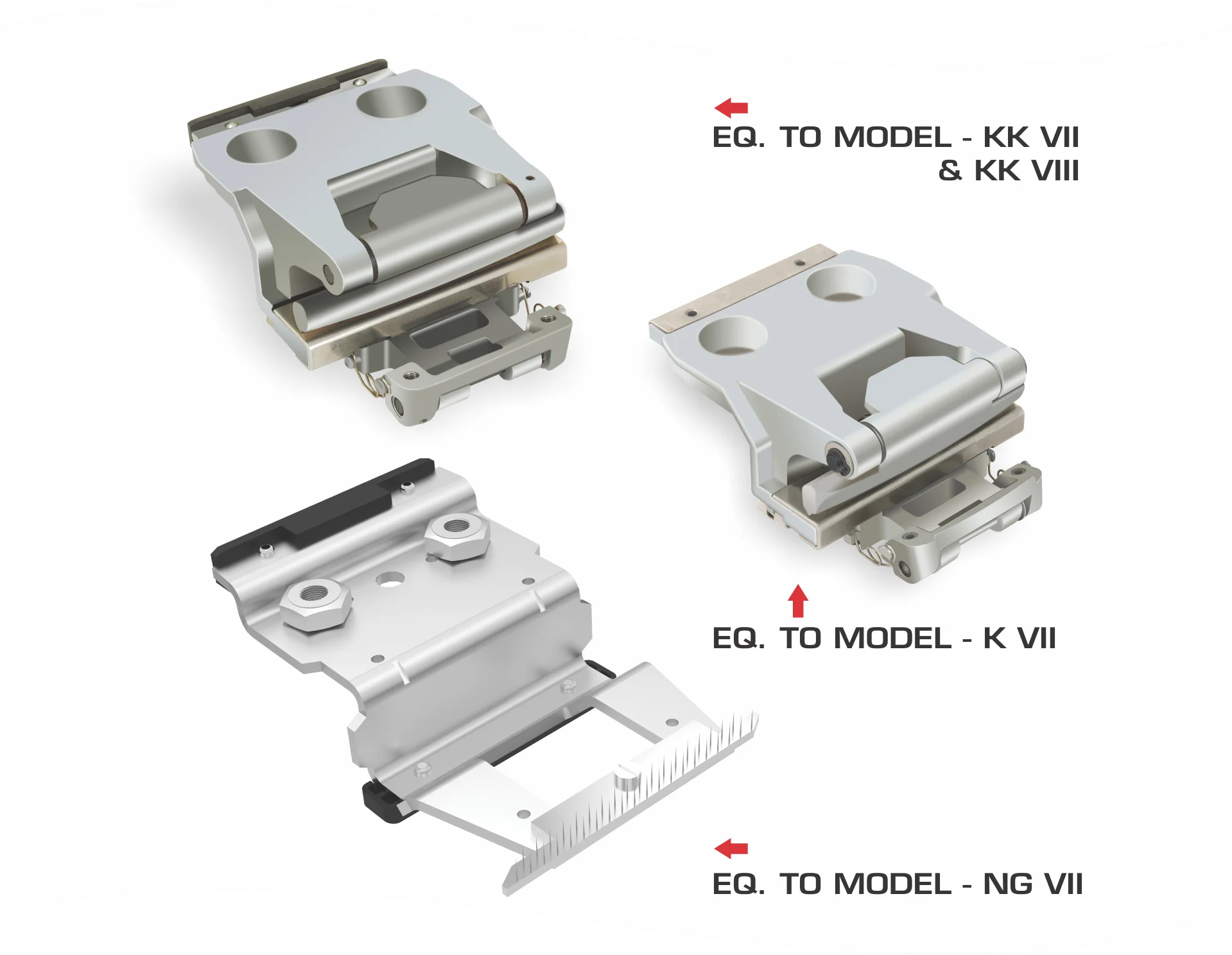

NEW - CLIP COMBINED,
EQ. TO MODEL - KK VII & KK VIII

TYPE BRUCKNER OTHER
CLIP ASSEMBLIES

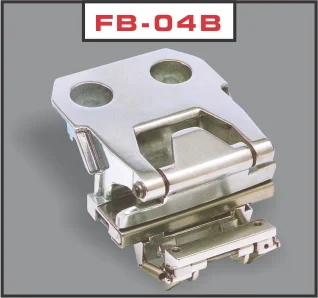

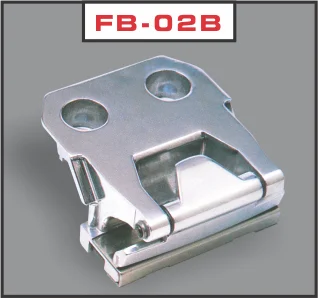

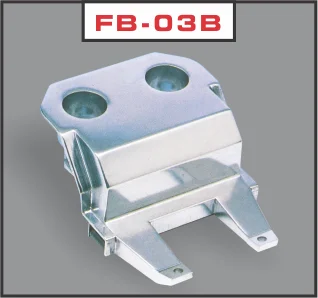

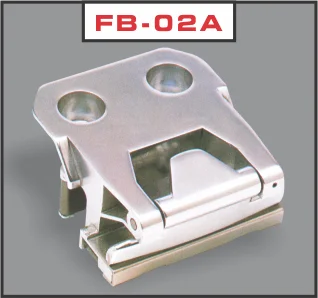

COMBINED PIN CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE A VERTICAL GUIDE EDGE IS INTEGRANT PART OF CLIP BODY.

COMBINED PIN CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE B VERTICAL GUIDE EDGE IS INTEGRANT PART OF CLIP BODY.

CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER

VERTICAL GUIDE EDGE IS INTEGRANT PART OF CLIP BODY.

CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

VERTICAL GUIDE PLATE (ANGULAR IRON) IS COMPONENT PART OF THE TRANSPORT CHAIN.

PIN LINK

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

VERTICAL GUIDE EDGES IS INTEGRANT PART OF CLIP BODY

PIN LINK

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

VERTICAL GUIDE PLATE (ANGULAR IRON) IS COMPONENT PART OF THE TRANSPORT CHAIN

COMBINED PIN CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE A VERTICAL GUIDE PLATE (ANGULAR IRON) IS COMPONENT PART OF THE TRANSPORT CHAIN

COMBINED PIN CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE B VERTICAL GUIDE PLATE (ANGULAR IRON) IS COMPONENT PART OF THE TRANSPORT CHAIN

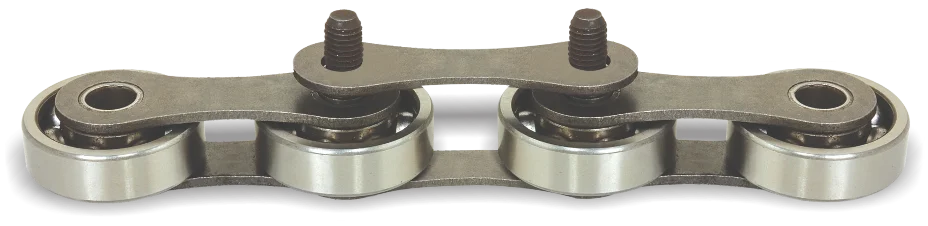

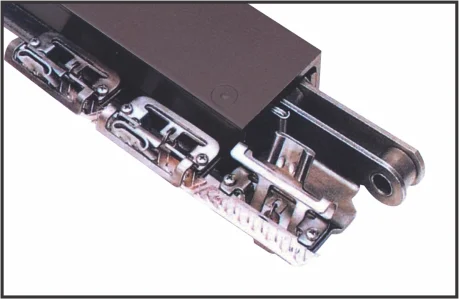

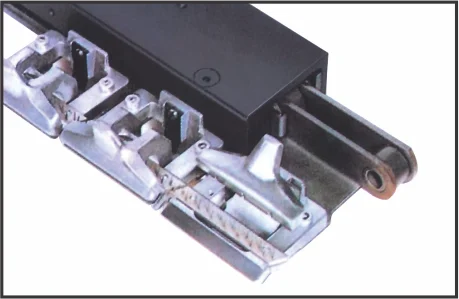

STENTER CHAIN ASSEMBLIES &
SPARE PARTS

EQ. TO FIT AGAINST

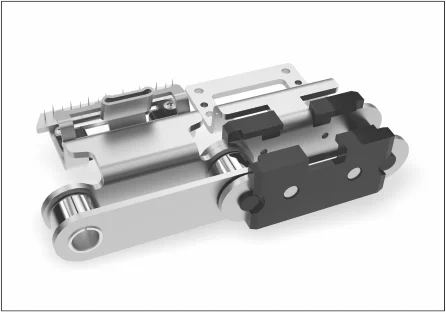

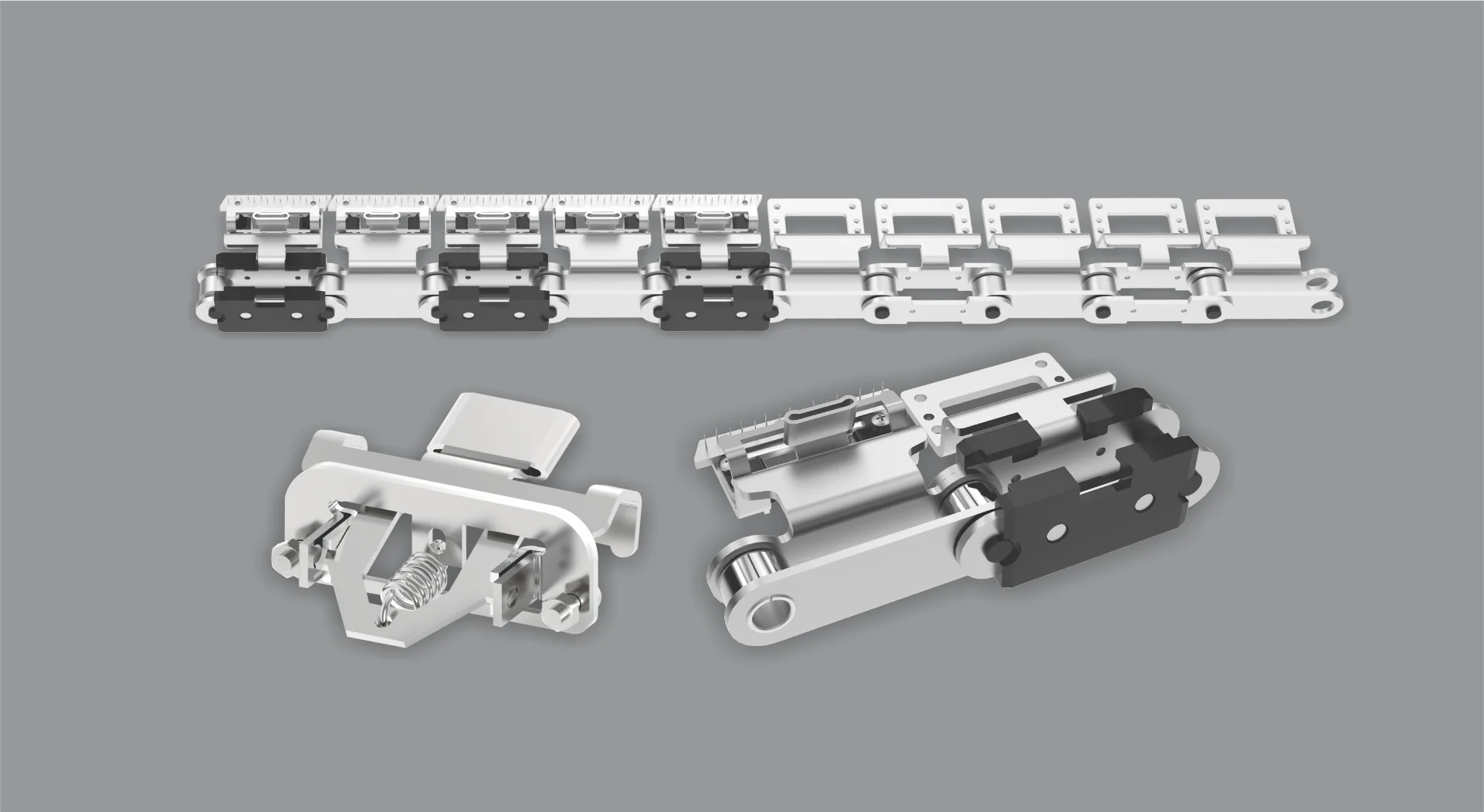

‘BRUCKNER’ STAR-DUR ( SK 999)

STENTER CHAIN FOR SILENT OPERATION
SUITABLE FOR TYPE: ‘BRUCKNER’

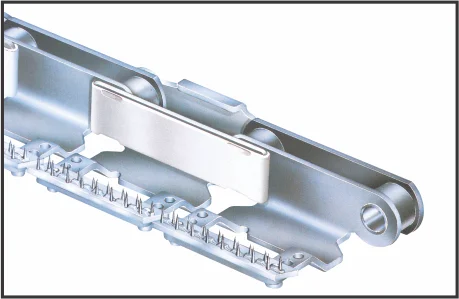

VERTICAL RETURN GLIDING CHAIN
WITH PIN BAR CARRIERS

VERTICAL RETURN GLIDING CHAIN IN
SPECIAL DESIGN WITH
DE-PINNING PROTECTION CLAMPS

VERTICAL RETURN GLIDING CHAIN
WITH COMBINED PIN/HAMMER CLIP

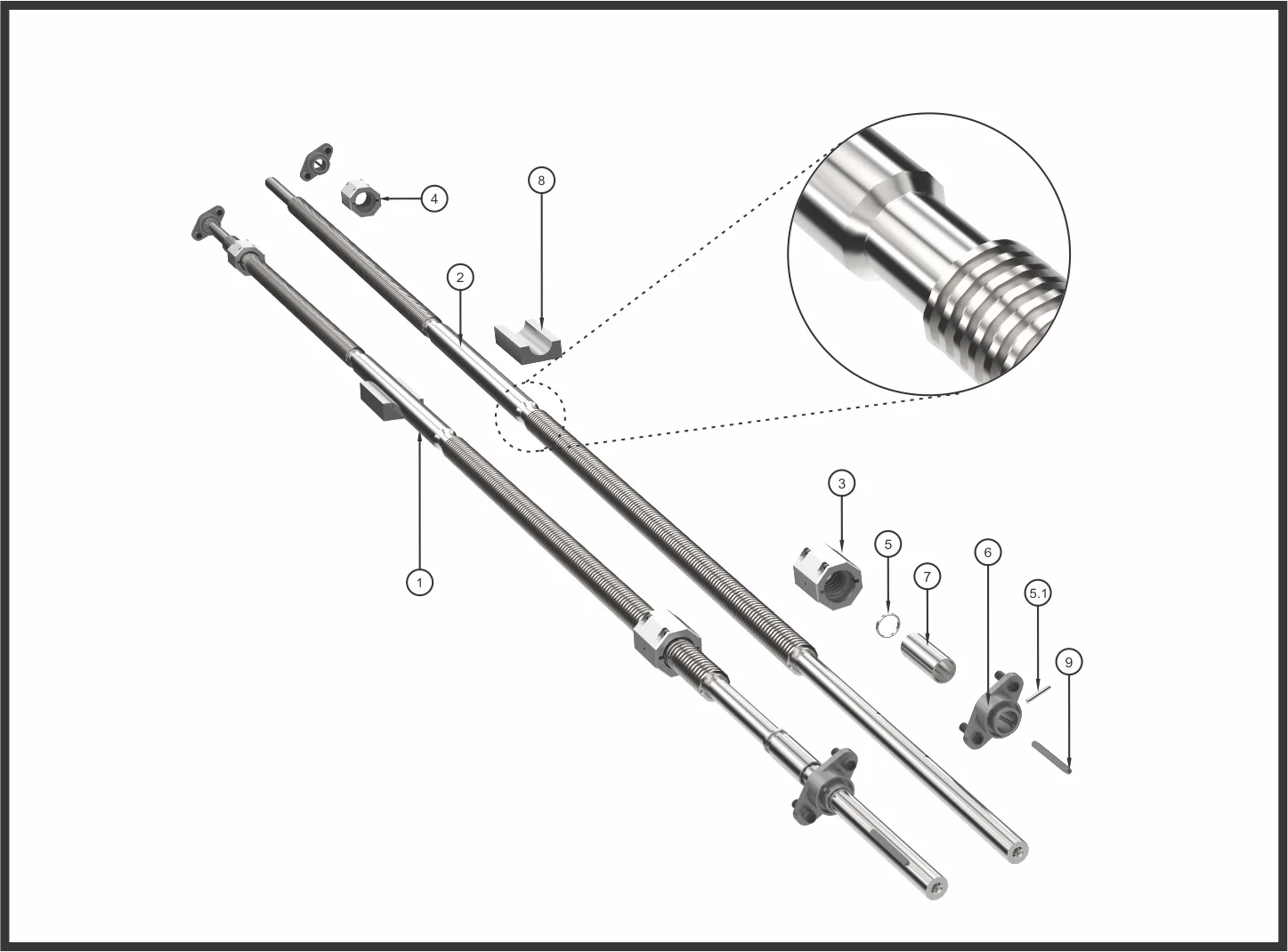

EQ TO POS. NO.	EQ. TO FIT AGAINST ORDERING PART NO.	QTY.	DESCRIPTION OF ITEMS
1	- - - -	1	WIDTH ADJUSTMENT SPINDLE ASSEMBLY
2	49296-991	1	WIDTH ADJUSTMENT SPINDLE TR. 45x6
	70222-443	1	SLEEVE COUPLING B = 35H7x150
3	70105-917 / 72314-268	1	SPINDLE NUT DIVIDED CAST MOUNT TR 45 × 16 DOUBLE THREADED
	72305-603	1	DIVIDED SPINDLE NUT WITH TORLON INSERT LEFT HAND THREAD
	72305-603	1	TORLON INSERT FOR DIVIDED SPINDLE NUT L/H THREAD
4	70105-920	1	DIVIDED SPINDLE NUT LEFT SIDE
	72305-612	1	DIVIDED SPINDLE NUT WITH TORLON INSERT RIGHT HAND THREAD
	72305-602	1	TORLON INSERT FOR DIVIDED SPINDLE NUT R/H THREAD
5	72230-197	2	ADJUSTING RING A 30 WITH BORE D = 6
5.1	70072-724	2	TENSION PIN 6x45 A-ST
6	72275-688	1	FLANGE BEARING WITH HUB AND BUSHING 30/30
7	72253-557	1	BUSH D=36x31x82
8	72256-587	1	SUPPORT BEARING FOR WIDTH ADJUSTMENT SPINDLE
9	41190-829	1	ADJUSTING SPRING A8x7x80

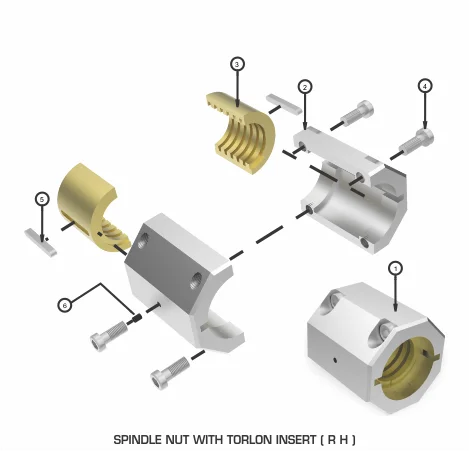

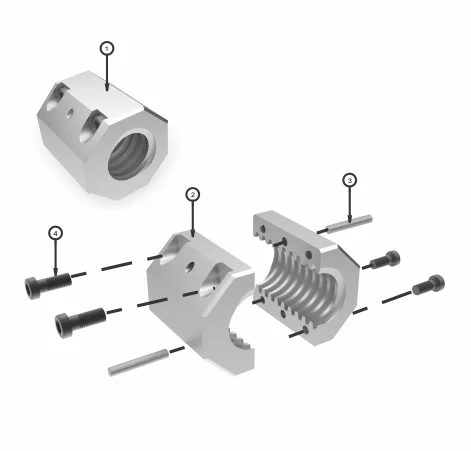

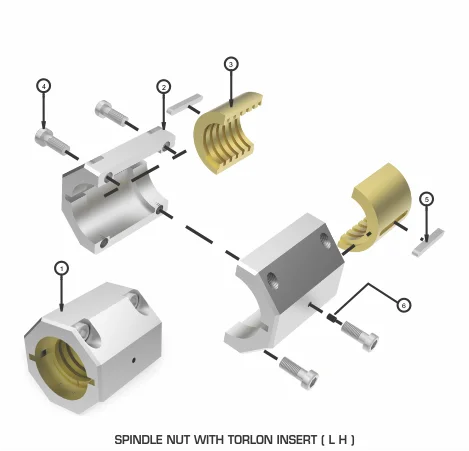

DIVIDED SPINDLE NUT WITH TORLON INSERT COMPLETE

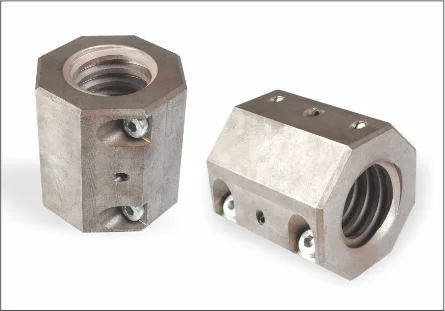

SPINDLE NUT DIVIDED CAST MOUNT
TR 45 x 16 DOUBLE THREAD COMPLETE

EQ. TO ‘BRUCKNER’ DIVIDED SPINDLE NUT

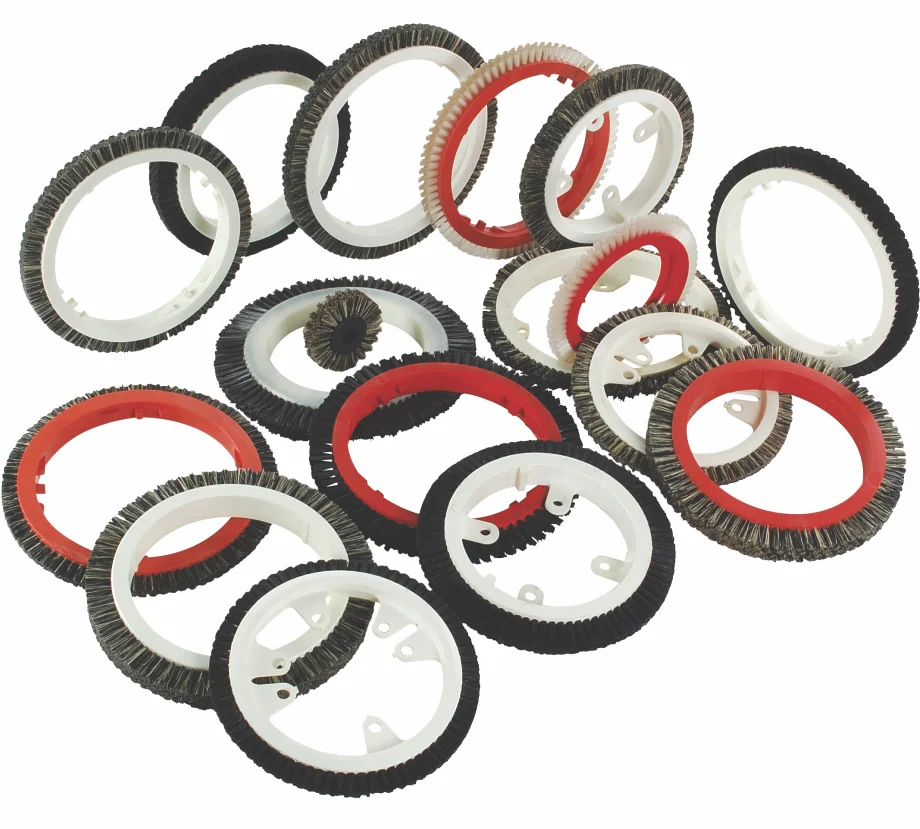

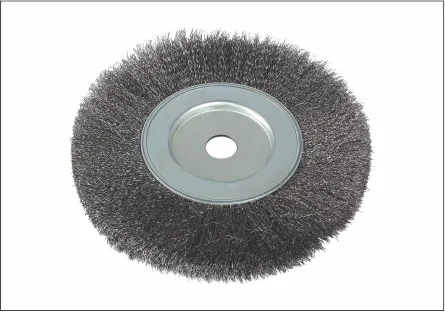

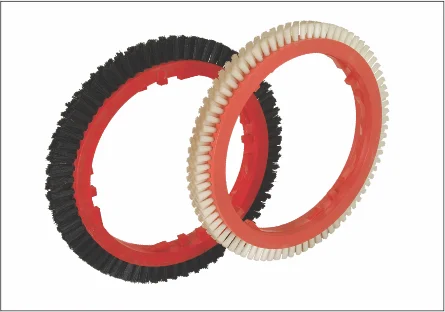

RING BRUSH

SUITABLE FOR ALL TYPES
OF STENTER FRAMES

RING BRUSH FILLING MATERIAL

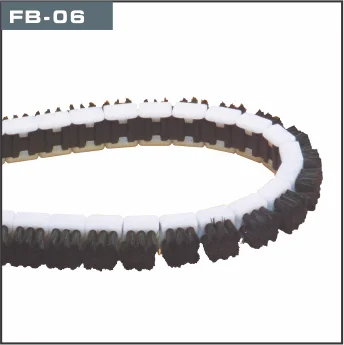

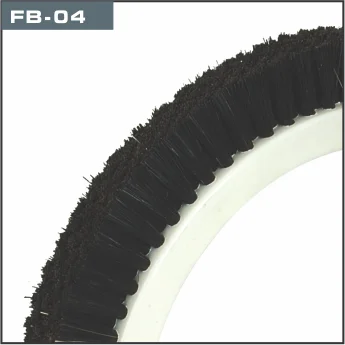

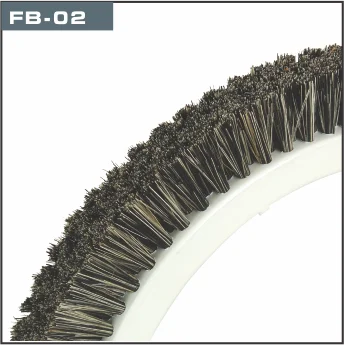

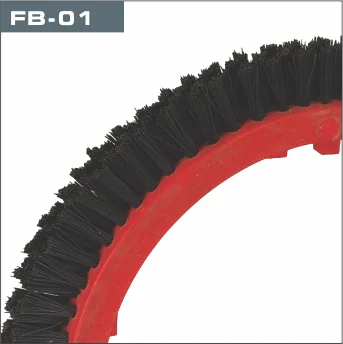

FB-01: BLACK BRISTLE ( EXTRA HARD ) FB-02: GREY BRISTLE ( HARD ) FB-03: LIGHT BRISTLE (MEDIUM) FB-04: PIG’S HAIR BRISTLE (SOFT) FB-05: NYLON BRISTLE (Ø 0.30 X 1.00mm) FB-06: BELT TYPE FOR KRANTZ & STENTEX
