The Complete Solution from one source !

SPARE-PARTS AND ACCESSORIES
SUITABLE FOR ALL TYPES OF

STENTER / TENTER

MACHINES...

  • ARTOS
  • KRANTZ
  • BABCOCK
  • BENNINGER
  • HARISH
  • BRUCKNER
  • DHALL
  • STENTEX
  • MORRISION
  • MATHER & PLATT
  • MONFORTS/MONTEX/MONFONGS
  • STRETCHLINE
  • JAMES FARMER NORTON
  • FAMATEX / PRIMATEX
  • SBM AND MANY OTHERS

COMPLETE SOLUTION FROM ONE SOURCE....

  • TRANSPORT CHAINS / SYSTEMS
  • PIN BAR CARRIERS
  • PIN LINKS
  • STENTER CLIPS
  • PIN - CLIPS ( CLIP COMBINED )
  • PIN PLATE / PIN BARS
  • OPENERS / CLOSERS FOR STENTER
    CLIPS
  • SLIDE RAILS, SLIDE PIECES, SLIDE
    BLOCKS
  • SPARES FOR OVERFEED SYSTEMS
  • SPROCKET WHEELS FOR DRIVE &
    RETURN AND HUBS.
  • MONORAILS, WIDTH ADJUSTMENT
    SCREWS & NUTS
  • HIGH TEMP. GRAPHITED/
    CARBON SLIDE RAILS
  • CHAMBER DOORS & DOOR
    SEALINGS
  • ROLLERS & RUBBER SLEEVED
    EXPANDERS
  • ROLL COVERINGS, TAKE UP STRIPS,
    ANTI SLIP TAPES, FILLERS OF
    VARIOUS STYLES SIZES.
  • PNEUMATIC CLOTH GUIDERS EQ. TO
    E+L KF2020 & SPARES, & WELL
    ACCEPTED CLOTH GUIDERS,
    UNCURLERS, WEB GUIDING
    EQUIPMENTS
  • ALL STANDARD & GENERAL
    RECOMMENDED SPARES &
    EQUIPMENTS OF MECHANICAL
    REQUIRED

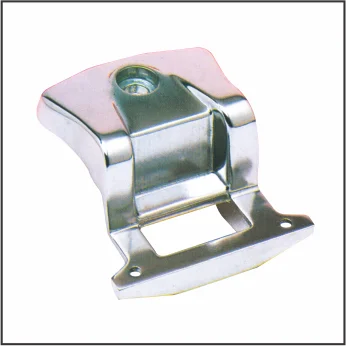

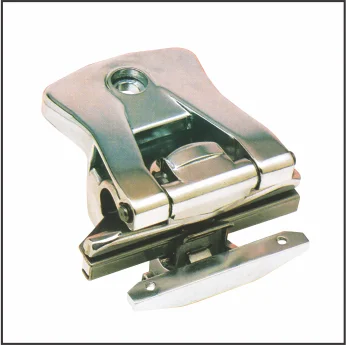

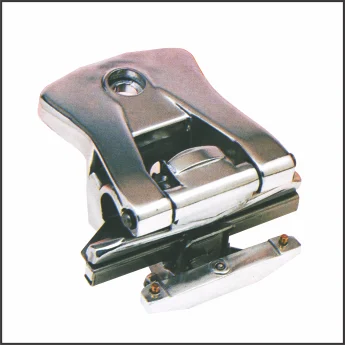

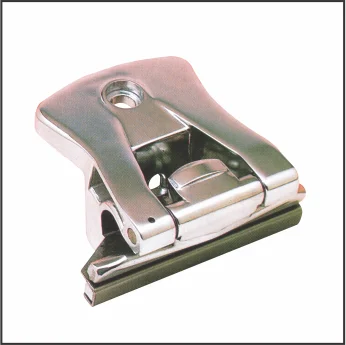

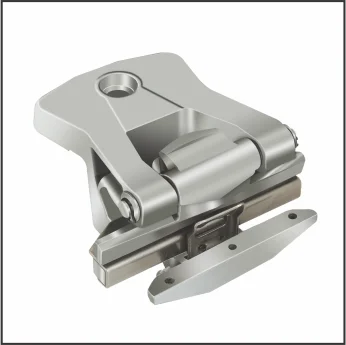

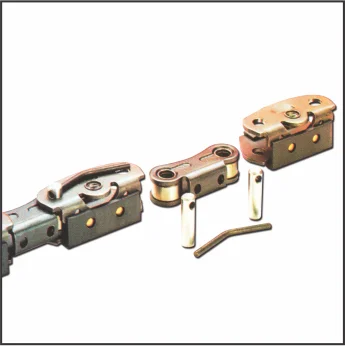

STENTER CLIPS & ACCESSORIES SUITABLE FOR
HARISH / ARTOS / BABCOCK / DHALL / SBM AND
MANY OTHER STENTER FRAMES

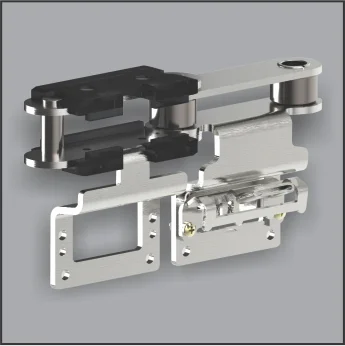

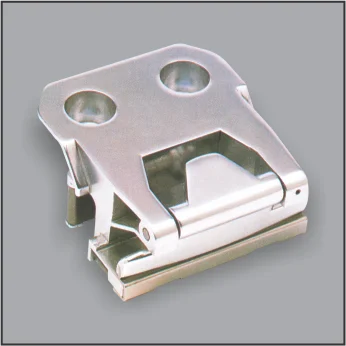

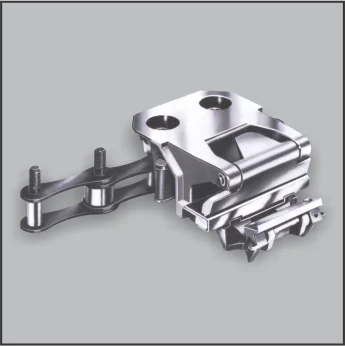

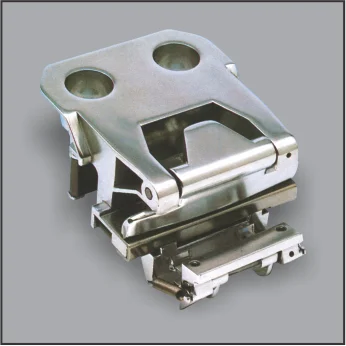

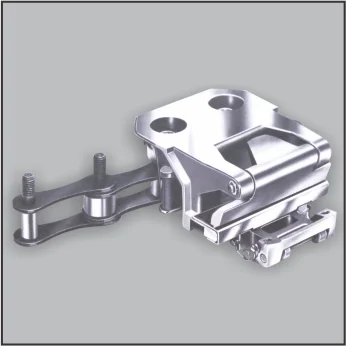

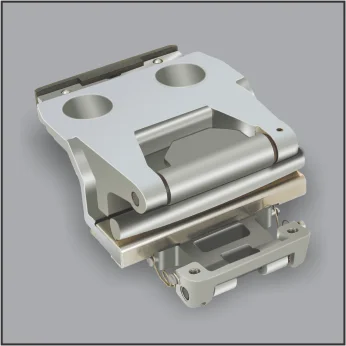

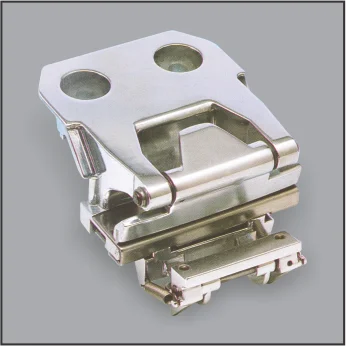

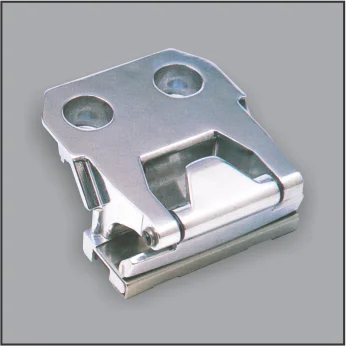

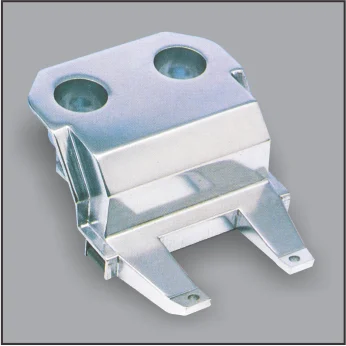

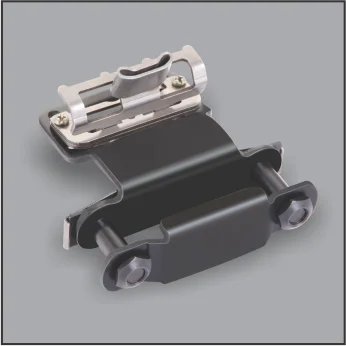

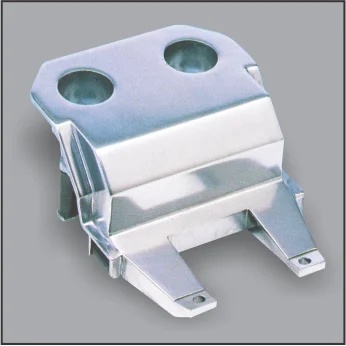

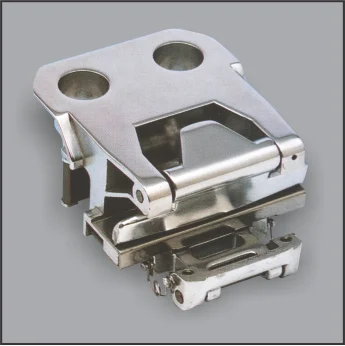

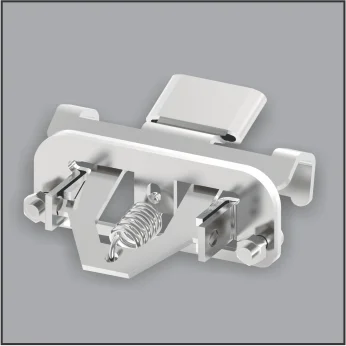

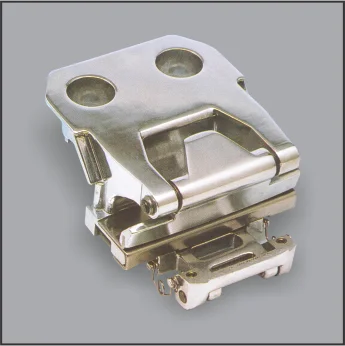

STENTER CLIPS & ACCESSORIES SUITABLE FOR
BRUCKNER STENTER FRAME

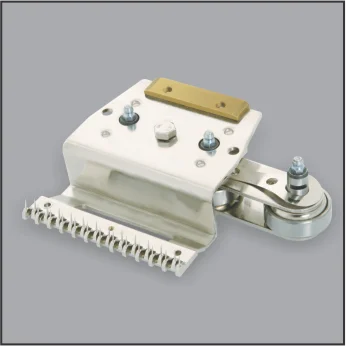

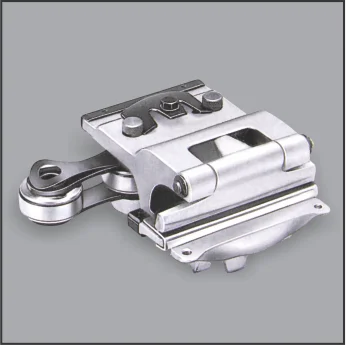

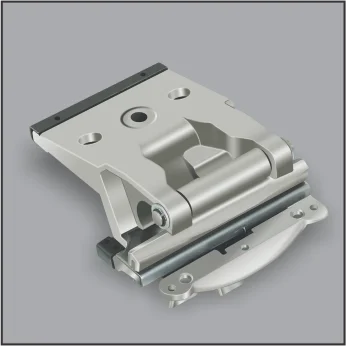

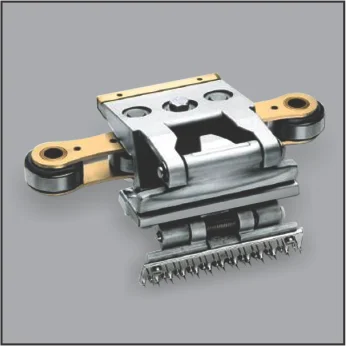

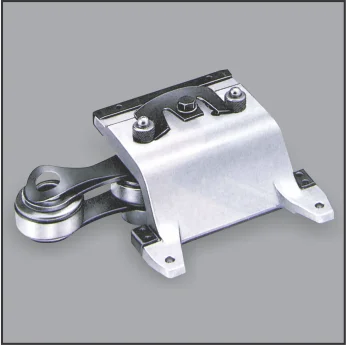

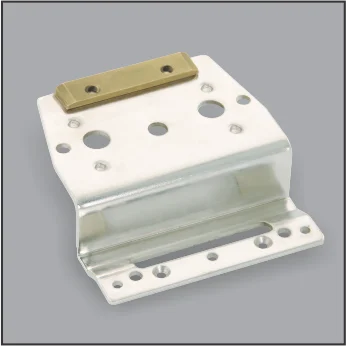

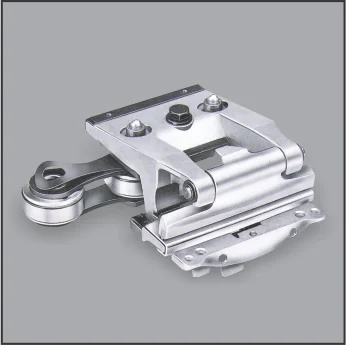

STENTER CLIPS & ACCESSORIES SUITABLE FOR
MONFORTS / MONTEX / MONFONGS,
STRETCHLINE STENTER FRAMES

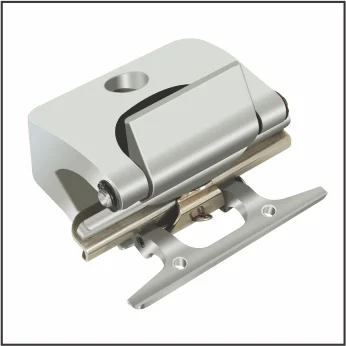

STENTER CLIPS & ACCESSORIES SUITABLE FOR
KRANTZ STENTER FRAMES

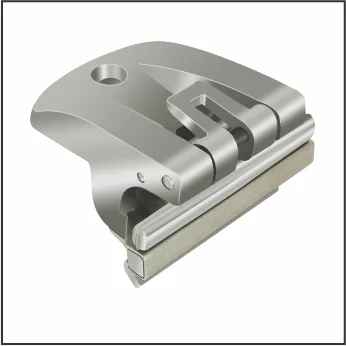

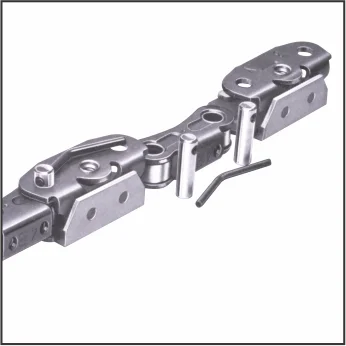

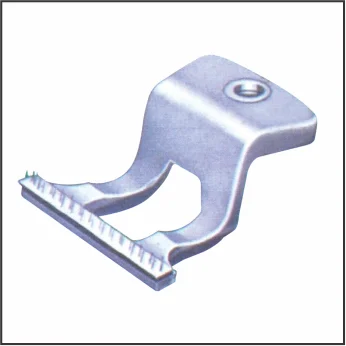

STENTER CLIPS & ACCESSORIES SUITABLE FOR
HARISH STENTER FRAMES

OTHER SPARE PARTS FOR
ARTOS / BABCOC / DHALL / SBM AND
MANY OTHER STENTER FRAMES

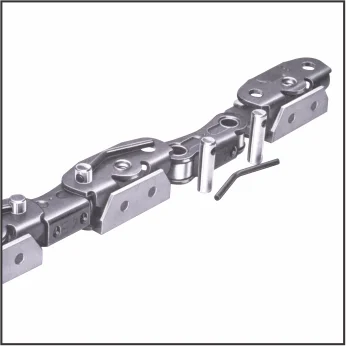

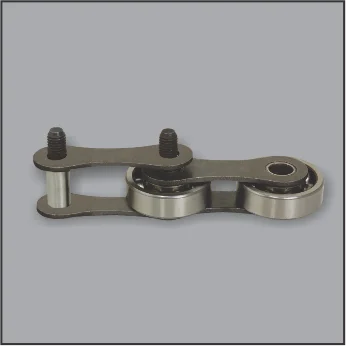

CARRIERS & CHAIN LINKS

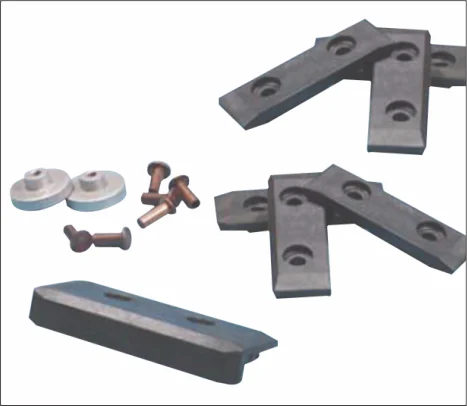

SYNTHETIC WEAR PADS &
BOTTOM PARTS.

CLEANING BRUSHES

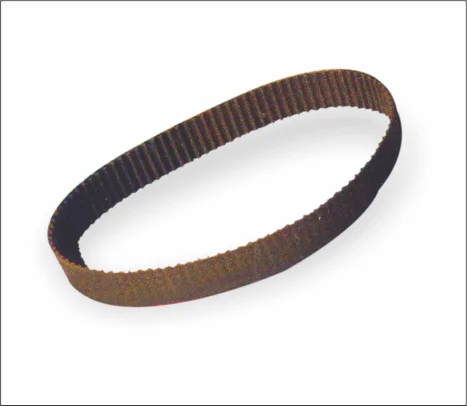

TOOTHED BELTS

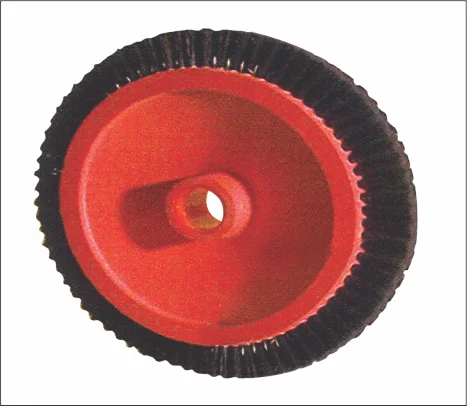

PINNING BRUSHES
PIN/CLIP CLEANING BRUSHES

OPENERS & CLOSERS
FOR STENTER CLIPS

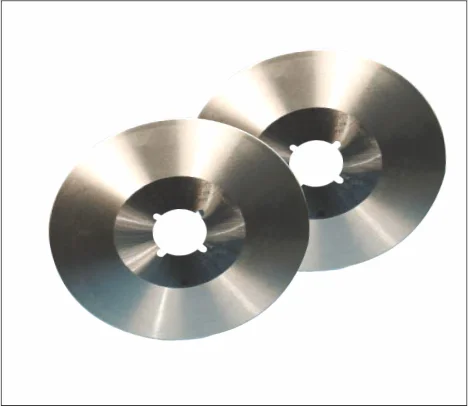

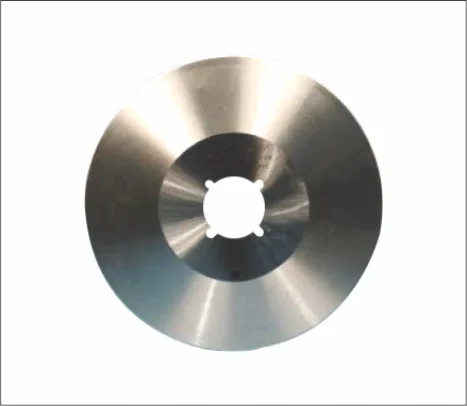

200MM SLITTING BLADE
IN HIGH SPEED STEEL

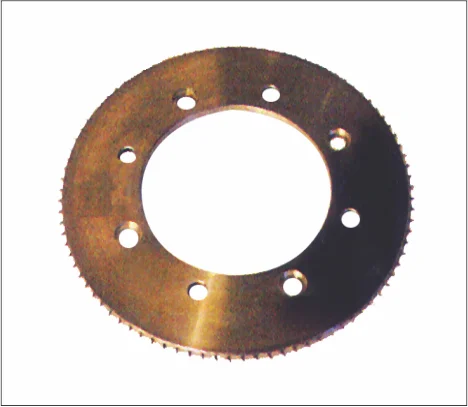

PIN WHEELS - ALL TYPES
BRASS & ALUMINIUM

PIN BARS

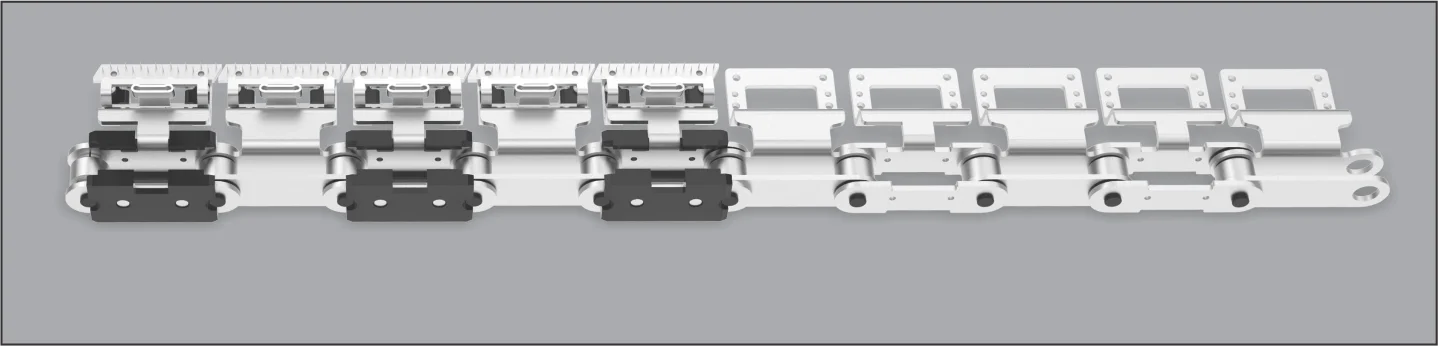

OTHER SPARE PARTS FOR
BRUCKNER STENTER FRAMES

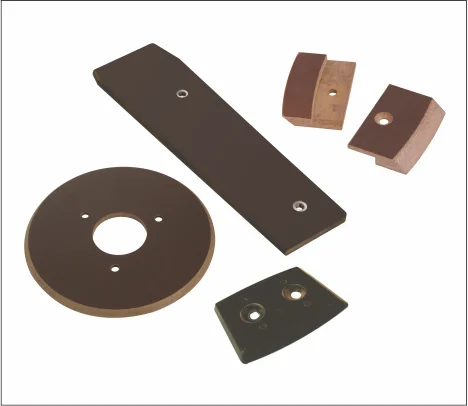

CLIP OPENER & CLIP OPENING DISC
( SEGMENT FOR HOLDING CLIP OPEN )
(1) WITH FREE HOLE &
(2) WITH COUNTER SUNK HOLE

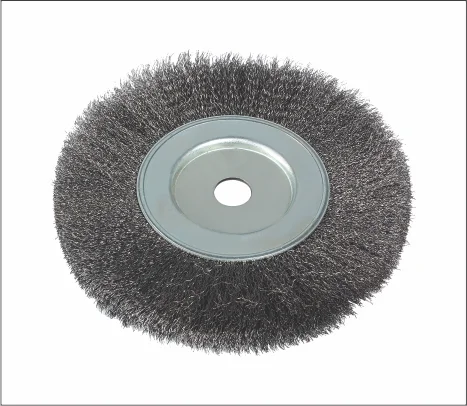

POST PINNING BRUSH
( STEEL WIRE )

200mm SLITTING BLADE
IN HIGH SPEED STEEL

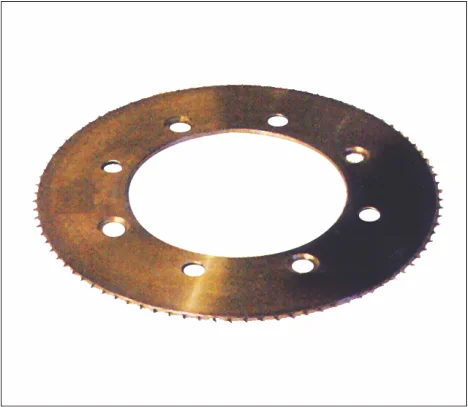

PIN WHEELS - ALL TYPES
BRASS & ALUMINIUM

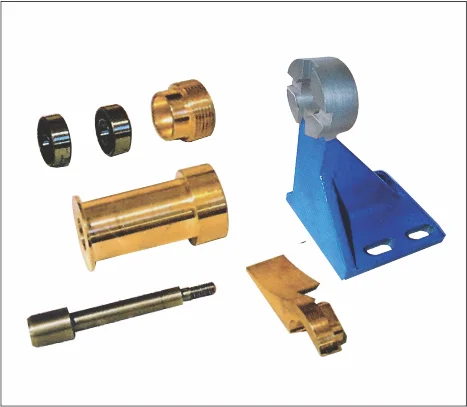

SPARES FOR
OVER FEED SYSTEMS

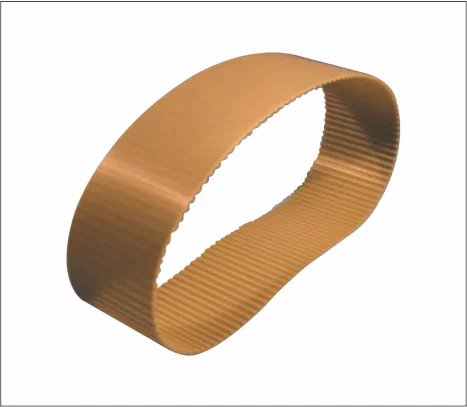

TIMING & DRIVE BELTS

HIGH TEMPERATURE
GRAPHITED / CARBON SLIDE RAIL

SPECIAL SLIDE PIECES

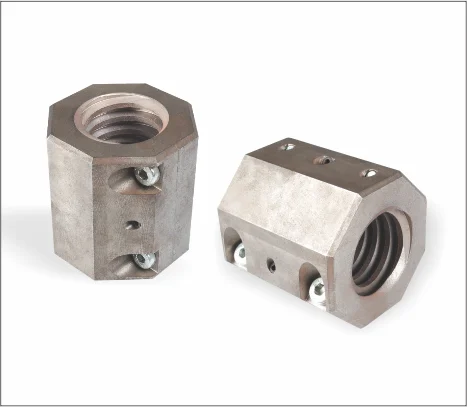

DIVIDED SPINDLE NUT
(WIDTH SCREW)

CHAIN, PIN-PLATE & DEPINNING
COMPLETE ASSEMBLY.

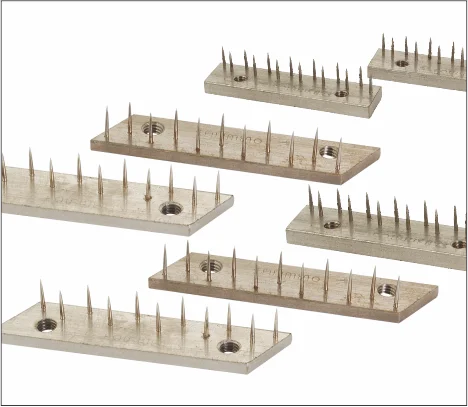

PIN PLATES
ALL TYPES

PINNING BRUSHES

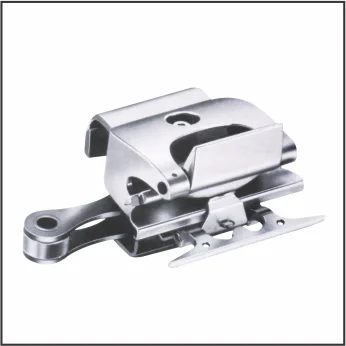

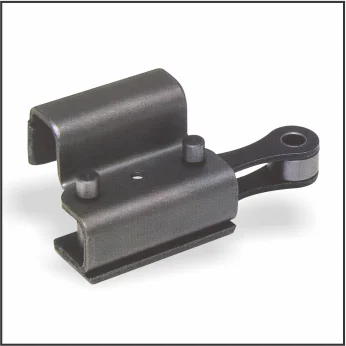

STENTER CLIPS & ACCESSORIES SUITABLE FOR
KRANTZ STENTER FRAMES

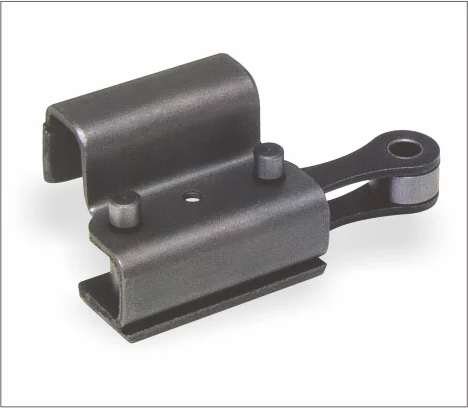

CHAIN LINKS

SLIDING STRIPS

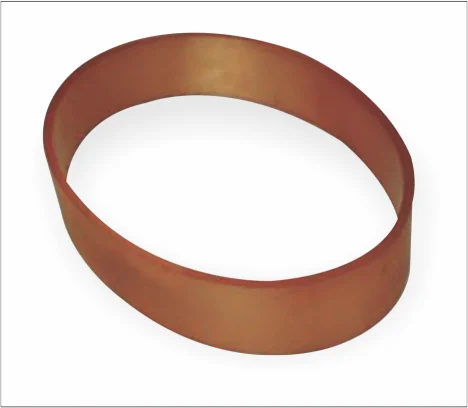

DRIVE BELT

TOOTHED BELTS

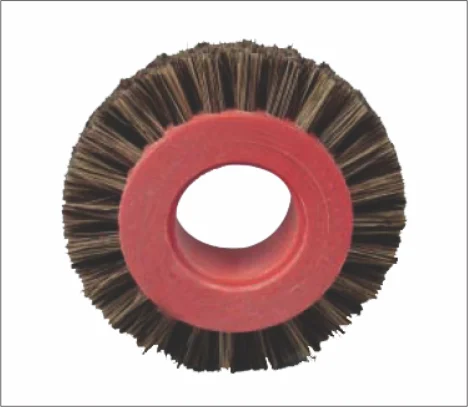

PINNING BRUSHES
PIN/CLIP CLEANING BRUSHES

OPENERS & CLOSERS
FOR STENTER CLIPS

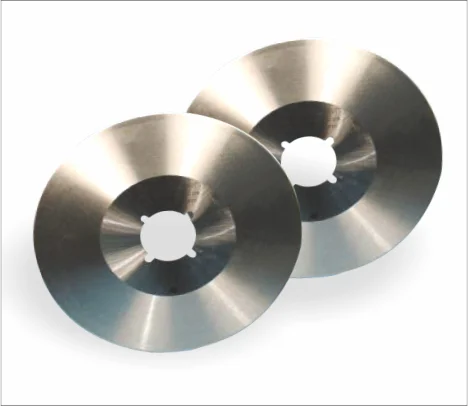

200MM SLITTING BLADE
IN HIGH SPEED STEE

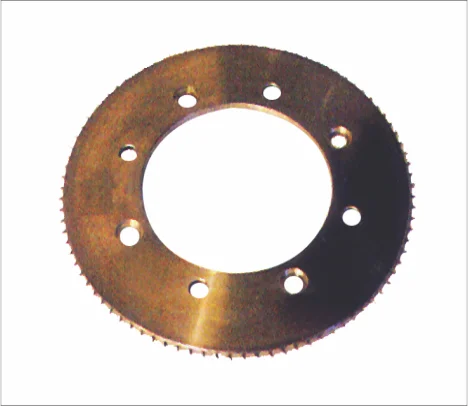

PIN WHEELS - ALL TYPES
BRASS & ALUMINIUM

PIN BARS
(WIDTH SCREW)

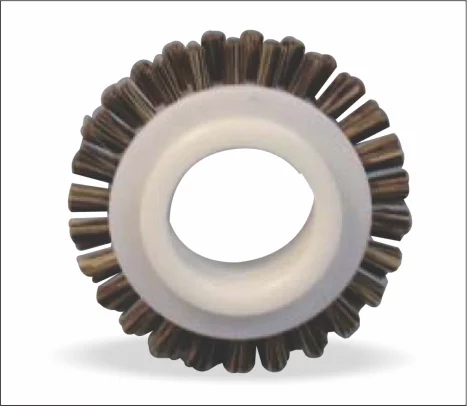

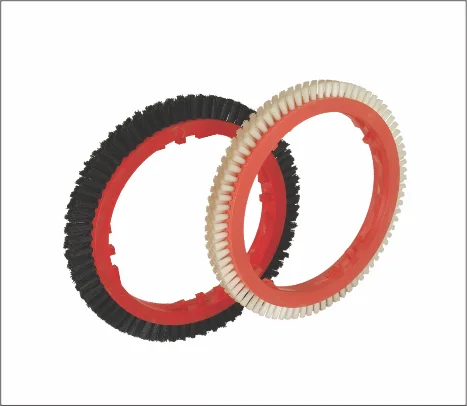

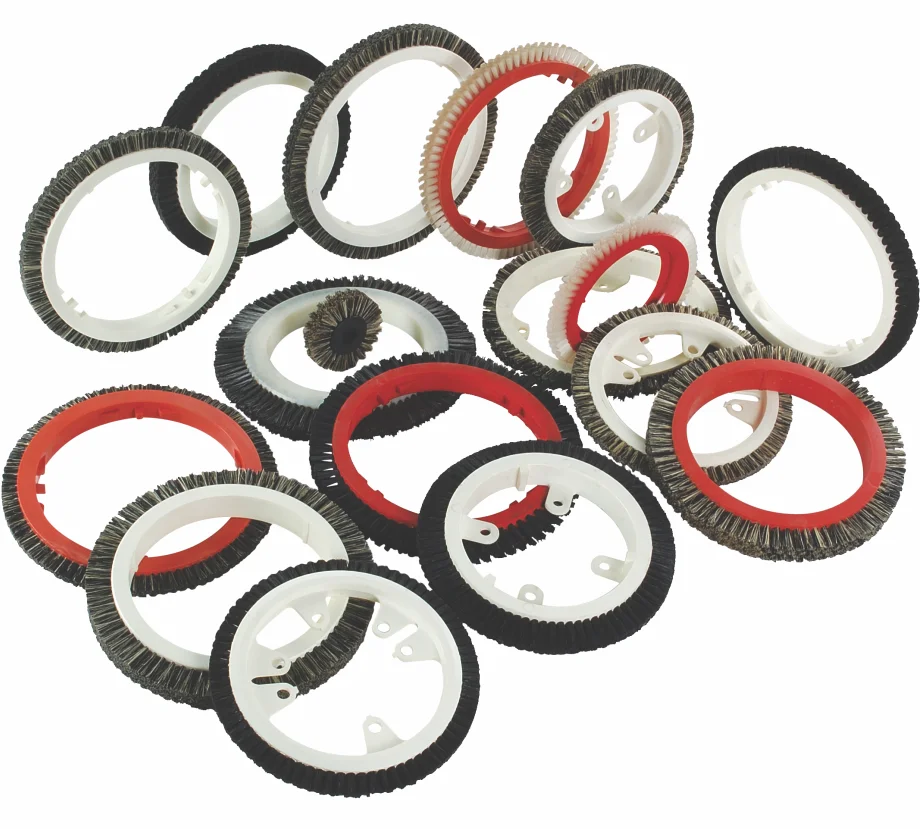

RING BRUSH

SUITABLE FOR ALL TYPES
OF STENTER FRAMES

RING BRUSH FILLING MATERIAL

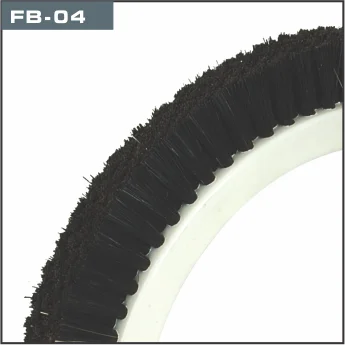

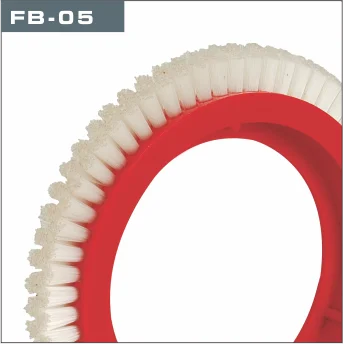

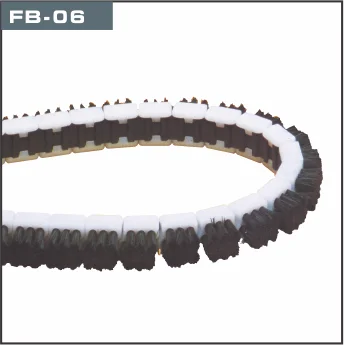

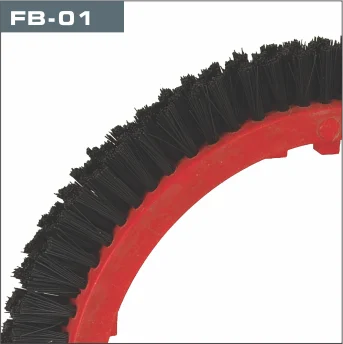

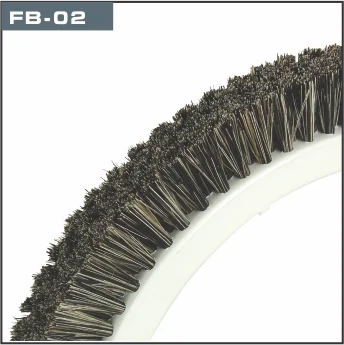

FB-01: BLACK BRISTLE ( EXTRA HARD ) FB-02: GREY BRISTLE ( HARD ) FB-03: LIGHT BRISTLE (MEDIUM) FB-04: PIG’S HAIR BRISTLE (SOFT) FB-05: NYLON BRISTLE (Ø 0.30 X 1.00mm) FB-06: BELT TYPE FOR KRANTZ & STENTEX

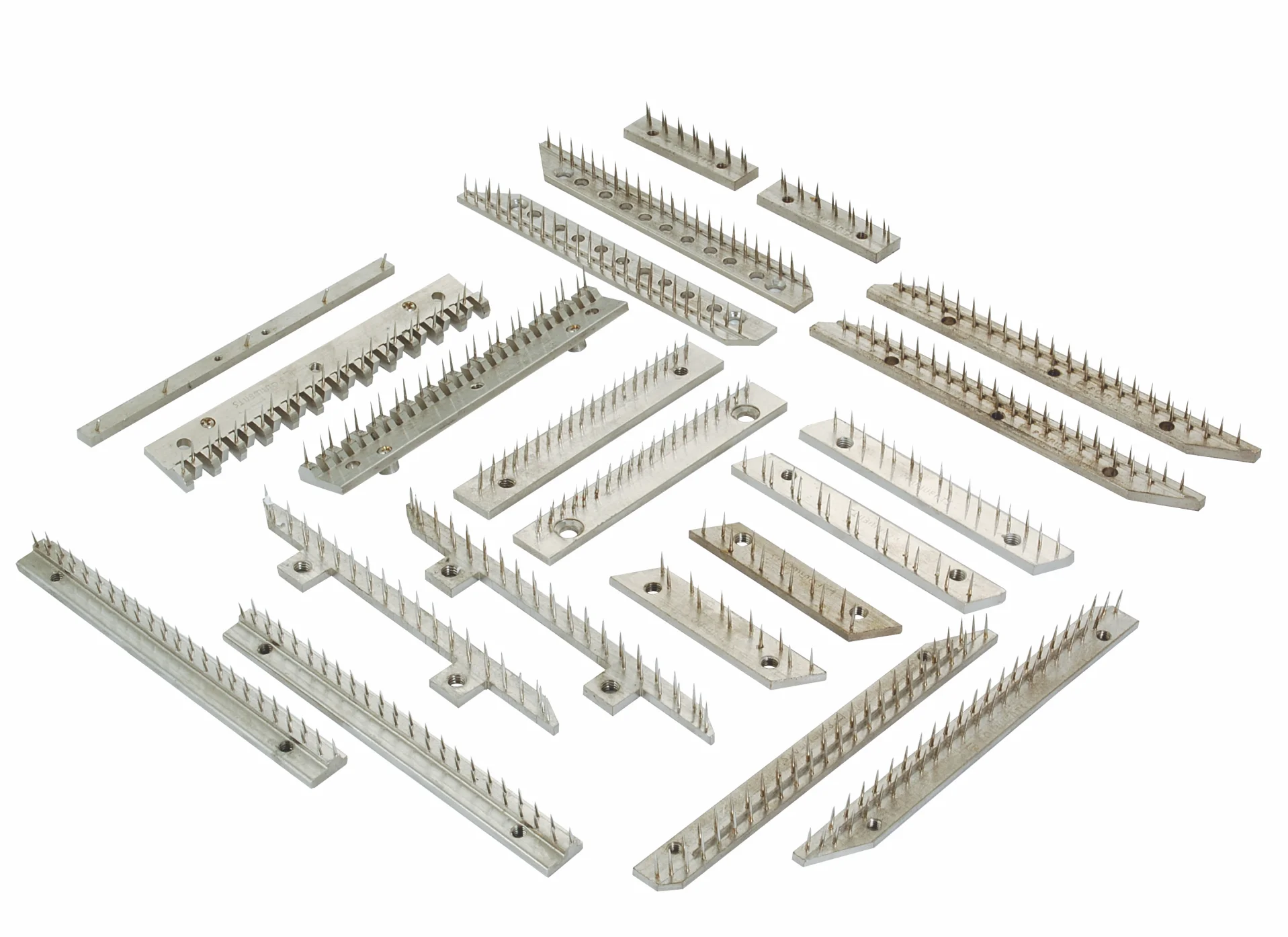

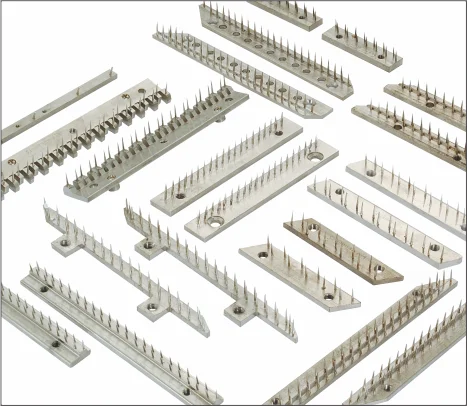

PIN PLATES SUITABLE FOR
ALL TYPES OF STENTER FRAMES

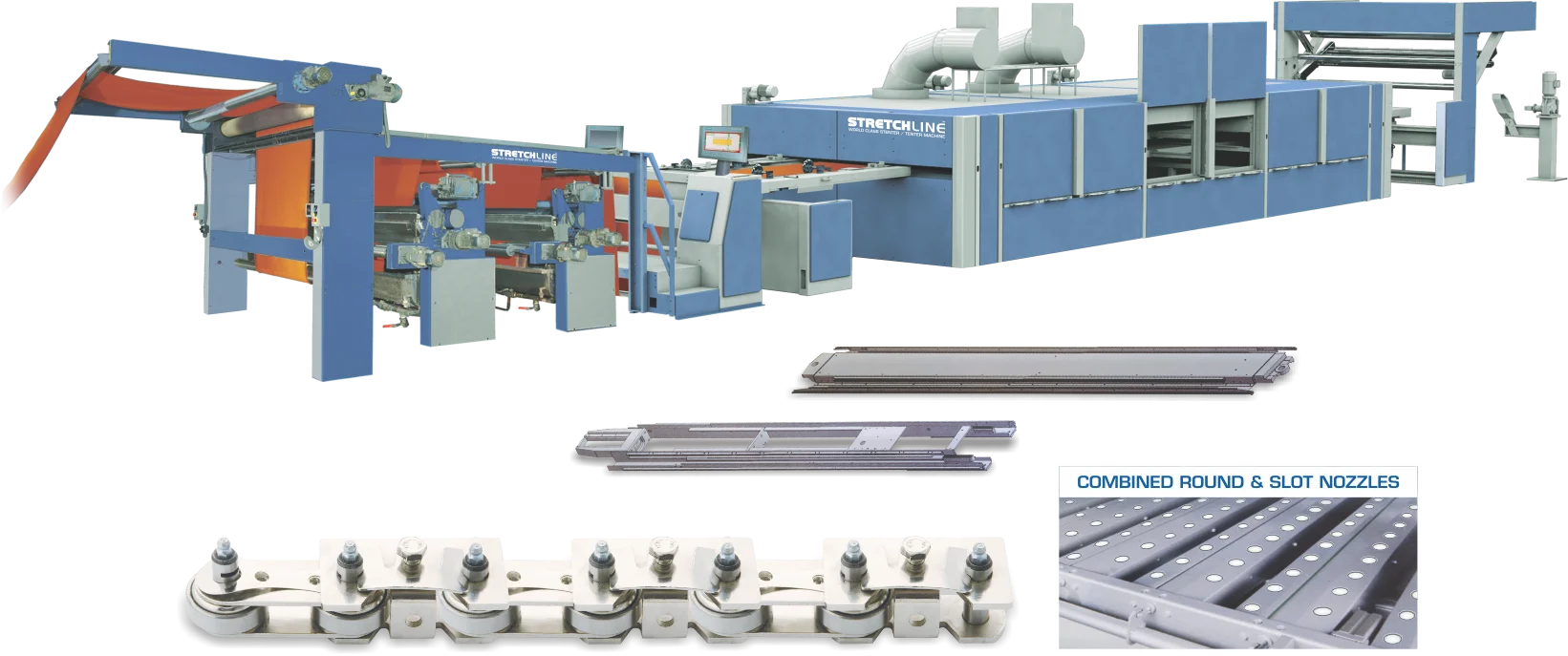

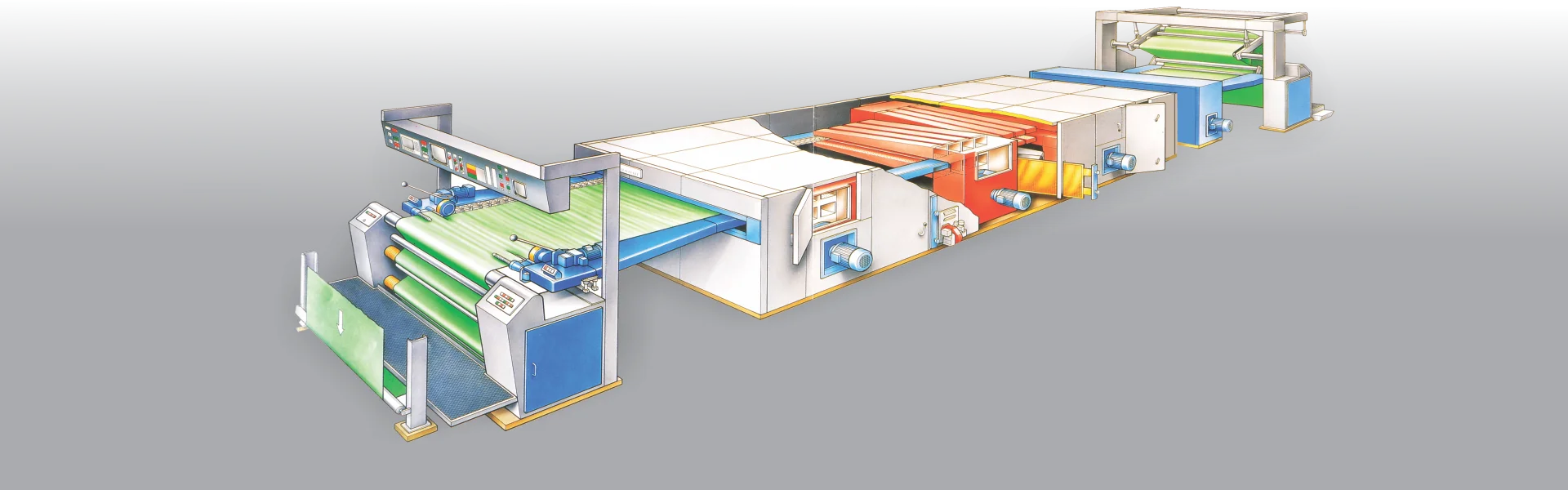

WORLD CLASS STENTER MACHINES,
SPARES & EQUIPMENTS...
THERMO CHAMBERS &
HORIZONTAL TRANSPORT TRACK/
SLIDING RAIL/CHAIN SUITABLE FOR TYPE:

MONFORTS/ MONFONGS / MONTEX, HASS,
HARISH TEXTILE STENTER / TENTER MACHINES

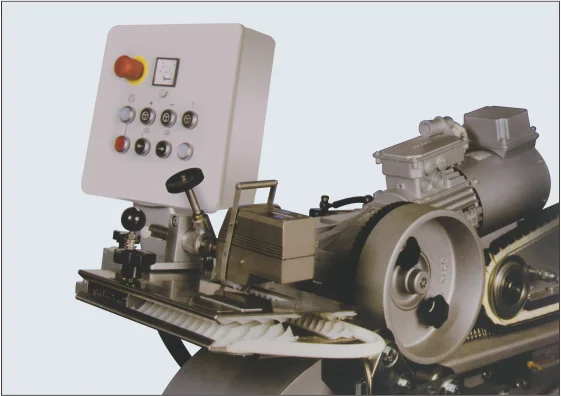

UNCURLING DEVICE & ROLLERS

UNCURLING DEVICE
TANDEMATIC SYSTEMS

UNCURLING ROLLERS
WITH DRIVEN SPINDLES

THERMO (CHAMBER) CONFIGURATION

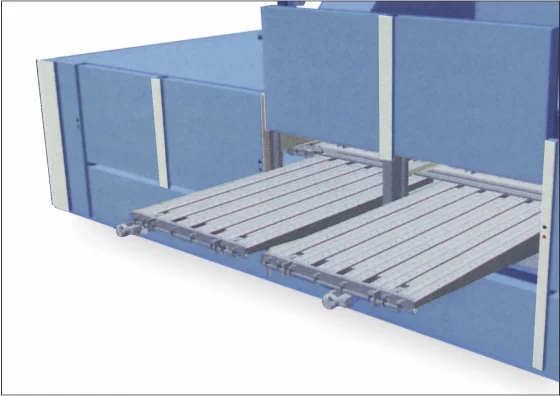

NOZZLE SYSTEM

  • “LAY-ON-AIR” FABRIC SUPPORTING PROPERTIES WITH BULKING EFFECT THROUGH INCREASED VOLUME.

ADVANTAGES

  • HIGHER EVAPORATION RATES.
  • GENTLE HEAT TREATMENT
  • CONTINUOUS FABRIC SUPPORT EVEN
    AT THE CHAMBER TRANSITION POINTS.
  • REDUCED ENERGY INPUT
  • ATTRACTIVE COST/BENEFIT RATIO IS
    POSSIBLE DUE TO FASTER AIR
    TRANSPORT WITH MICROTUMBLER
    EFFECT.

COMBINED ROUND AND SLOT NOZZLES

  • THE NEW SLOT NOZZLE SYSTEM FOR HIGH-PILE AND TERRY CLOTH FABRICS
    ALSO SUITABLE FOR DYEING PROCESSES ON THE STENTER.

J BOX , SELVEDGE TRIMMER & CUTTER

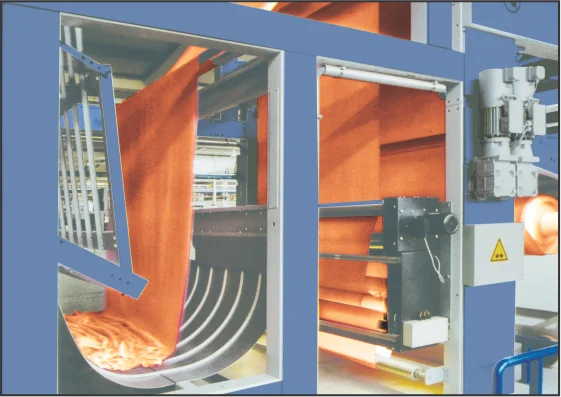

J BOX

  • FOR UNINTERRUPTED MACHINE OPERATION. WITH OPTO-ELECTRONIC MONITORING.

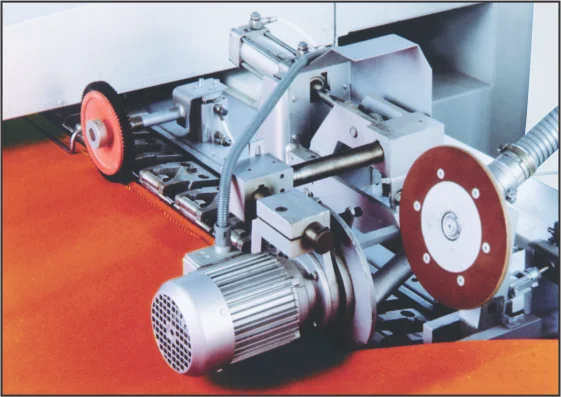

SELVEDGE TRIMMER E+L

  • CAN BE RAISED AND LOWERED PNEUMATICALLY. MINIMAL SELVEDGE TRIMMING FOR VERY LOW FABRIC WASTE. WITH A POWERFUL SUCTION MECHANISM.

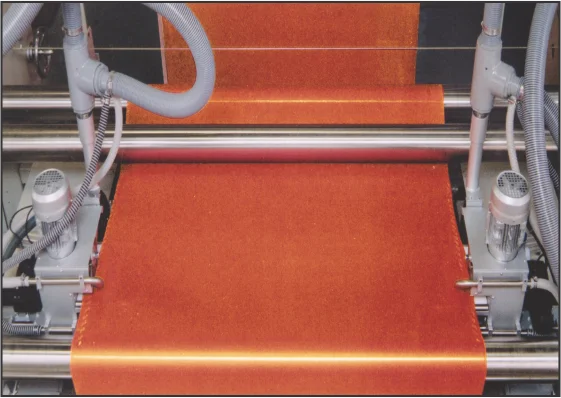

SELVEDGE CUTTER E+L

  • OPTO-ELECTRONIC CONTROL WITH PNEUMATIC SPREADING SUPPORT WITH HARD WEARING SCISSOR CUT PRINCIPAL FOR MINIUM SELVEDGE CUT-OFF. SELVEDGE CUT-OFF CAN BE REDUCED BY UPTO 60% IN COMBINATION WITH LASER.

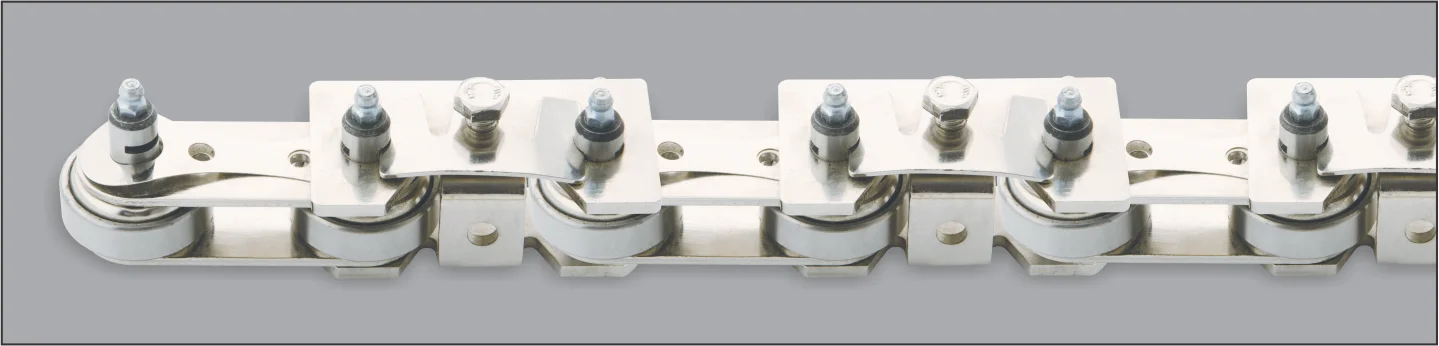

HORIZONTAL TRANSPORT TRACK / SLIDING RAIL / CHAIN

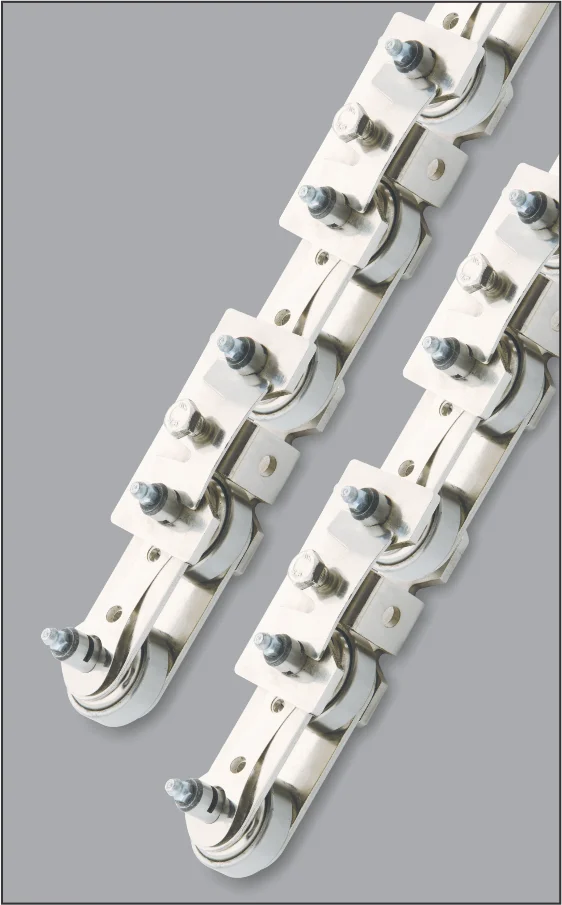

HORIZONTAL CHAIN

  • SPECIAL LONG-TERM LUBRICATED ROLLER BEARING CHAIN (REQUIRES LUBRICATION ONCE A YEAR OR EVEN LATER) CHAIN WITH FULLY ENCAPSULATED BALL BEARINGS AVAILABLE AS PIN CHAIN, CLIP CHAIN AND COMBINED PIN & CLIP CHAIN DESIGN.
  • PIN CHAIN WITH FABRIC PROTECTION FLAP CAN BE SUPPLIED ON REQUEST FOR KNITTED FABRIC.
  • OIL CUPS TOTALLY ELIMINATED HENCE NO POSSIBILITY OF FABRIC STAINING & DRIPPING.
  • INDIVIDUALLY DRIVEN MAIN CHAIN WITH DIRECT DRIVE FOR LH & RH SIDE.

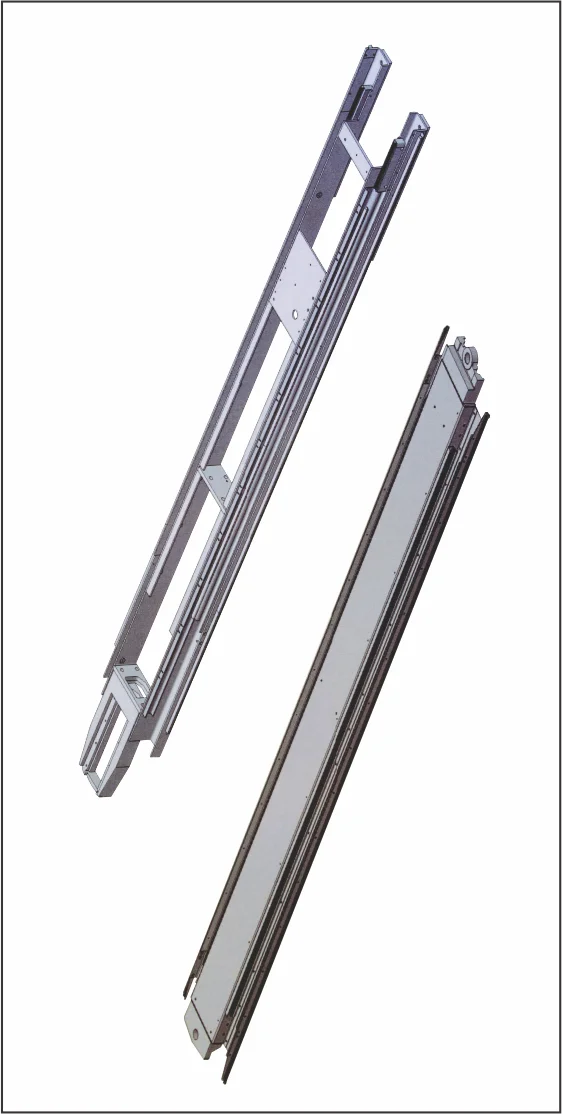

TRACK / SLIDING RAIL

  • STEEL FABRICATED TRACK WITH GRAPHITE RAIL.
  • SPECIAL SHOCK ABSORBERS ARE PROVIDED FOR SMOOTH TURNING OF THE CHAIN.
  • LESS FRICTION AS GRAPHITE IS SELF LUBRICATING MATERIAL.
  • SPECIAL CHAIN AND TRACK DESIGN LEADS TO RUNNING SPEEDS UP TO 150 M / MIN.
  • HIGHER CROSS TENSION CAN BE APPLIED TO FABRIC COMPARED TO TRADITIONAL CHAIN.
  • LOW MAINTENANCE, FREE FROM OIL SPILLAGE AND HIGHER SPEED.
  • SIGNIFICANT ENERGY SAVING DUE TO ROLLING CHAIN AND GRAPHITE RAIL (LESS FRICTION

J BOX , SELVEDGE TRIMMER & CUTTER

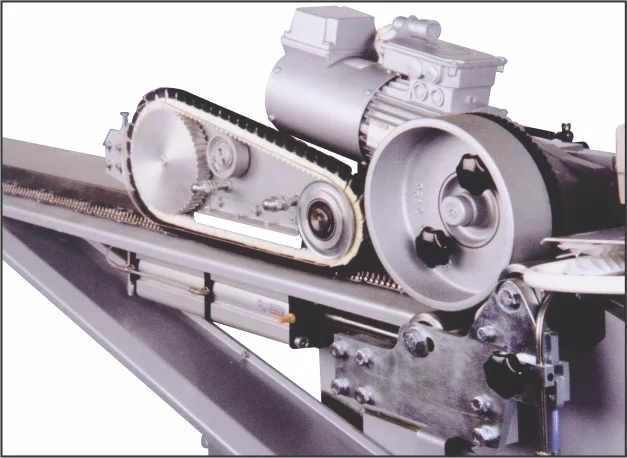

PINNING DEVICE WITH DRIVEN AFTERPINNING BELT SYNCHRONISED DRIVE SYSTEMS FOR EFFICIENT PINNING AND RELIABLE AFTER-PINNING EVEN WITH LARGE OVERFEEDS AND HIGHLY ELASTIC FABRICS. PNEUMATIC OPERATION FOR LIFTING AND LOWERING IN PROCESS- OPTIMISED SEQUENCE.THE DRIVE IS SYNCHRONISED WITH THE DRIVE OF THE STENTER CHAIN, THUS PREVENTING ANY SHIFTING OF THE MESH STRUCTURE. LONG SERVICE LIFE OF THE BRUSH BELT AS IT IS NOT SUBJECTED TO FRICTION. SUITABLE FOR KNITTED FABRIC RANGES.

PROVIDING PREMIUM QUALITY PRODUCTS & SERVICES

IN INDIA & MORE THAN 28 COUNTRIES OF THE WORLD
