Textile Stenter Spare Parts by Fourwents

PIN BAR / PIN PLATES SUITABLE FOR THE FOLLOWING BRANDS
OF TEXTILE STENTER/TENTER, MERSERISER & COMPACTOR MACHINES

● ALSO, WE CAN DESIGN AND DEVELOP AGAINST SPECIFIC REQUIREMENTS.

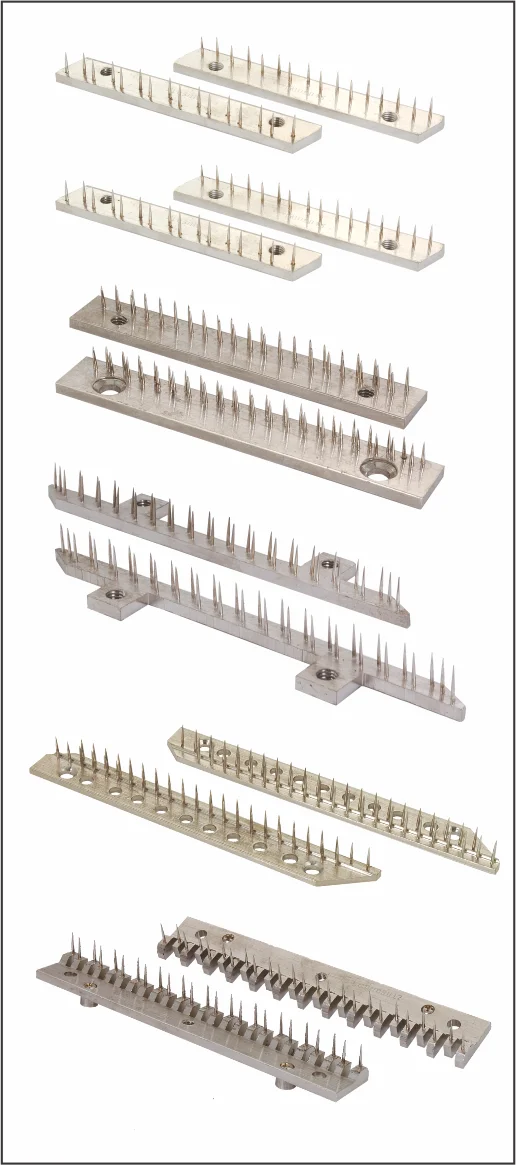

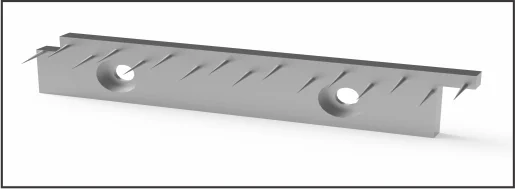

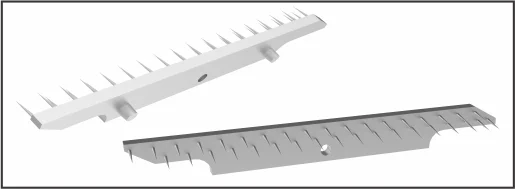

THE PIN BAR IS MADE OF CHROMIUM-PLATED BRASS. AND THE PINS OF CORROSION PROOF STAINLESS STEEL OR CARBON STEEL. THERE ARE THREE MAIN TYPES OF PIN BAR :

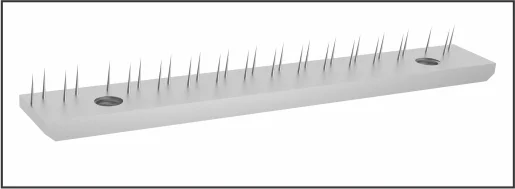

THE UNSTAGED PIN BAR FOR DRYING PROCESSES.

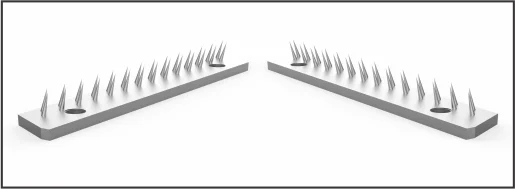

ALL THESE PIN BAR TYPES ARE AVAILABLE IN RECTANGULAR FORM.

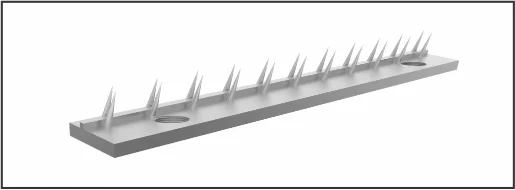

STAGE PIN BAR, WHICH IS SUITABLE IN ADDITION FOR HEATSETTING AND THERMOSOL PROCESSES, BECAUSE THE STAGE KEEPS THE SELVEDGE CLEAR OF THE PIN SURFACE.

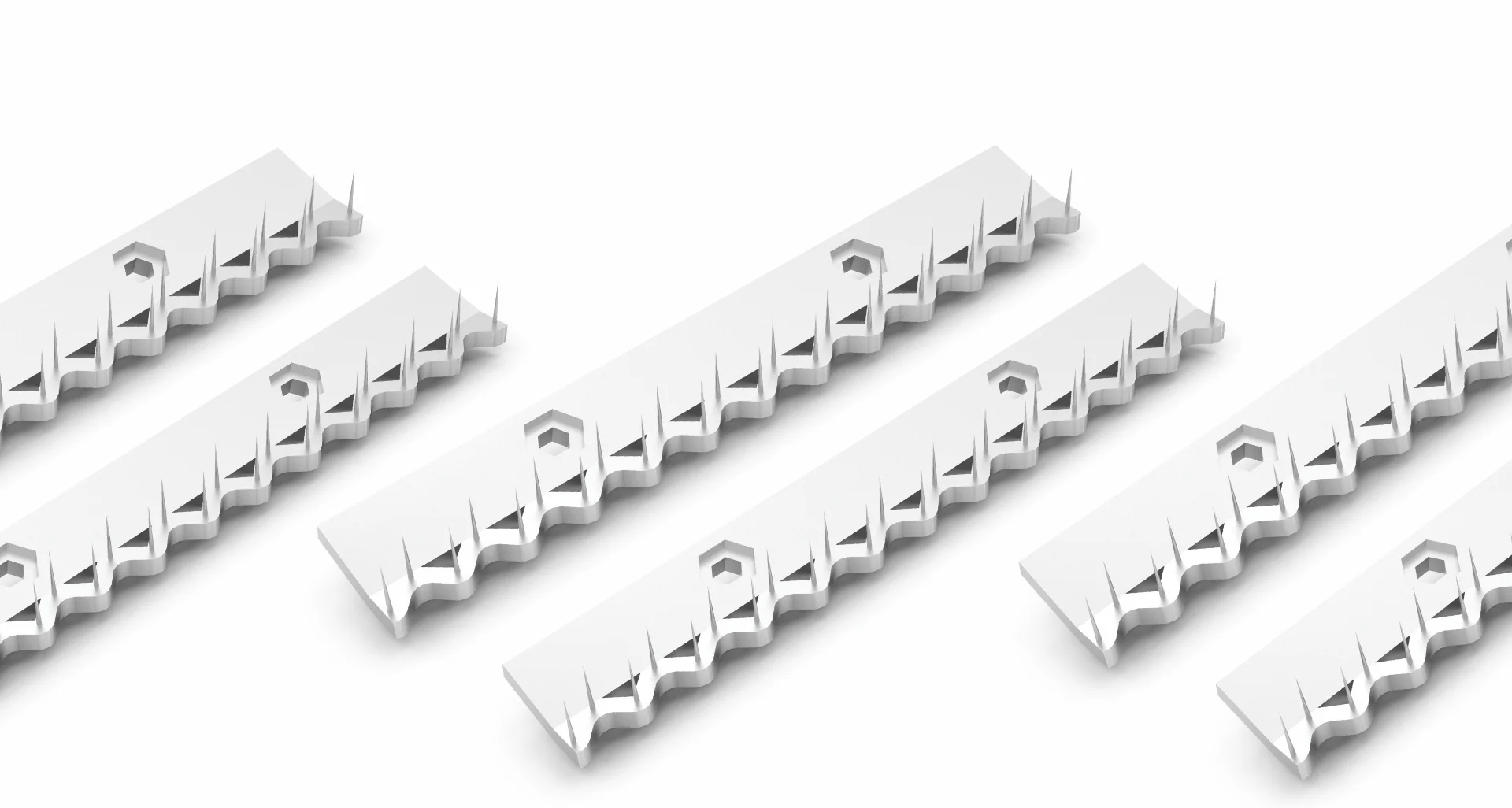

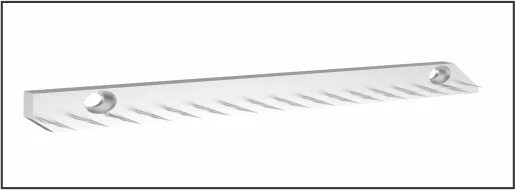

AND THE COMB PIN BAR, WHICH ALLOWS THE SELVEDGE TO BE VENTILATED DIRECTLY FROM UNDERNEATH , IMPORTANT ESPECIALLY IN THERMOSOL PROCESSES. (THE COMB PIN BAR, HAS REPLACED THE HOOK PIN BAR WITH ITS LIMITED PERMISSIBLE STRETCHING STRAIN).

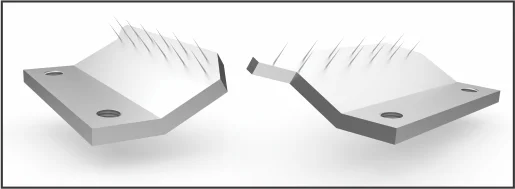

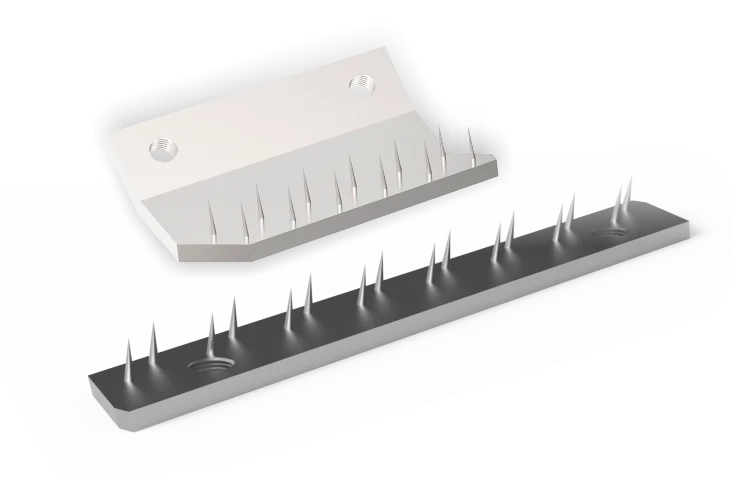

FOURWENTS’ ALSO SUPPLIES STAGED AND UNSTAGED PIN BARS WITH DIAGONALLY CUT ENDS. THIS DESIGN ENSURES CONTINUOUS SUPPORT OF THE SELVEDGE. THE DISTA N CE BETWEEN THE LAST PIN OF ONE PIN BAR AND THE FIRST PIN OF THE NEXT IS THEN ONLY APPROX. 5 MM
THE PIN BAR SUPPORTS ARE CONSTRUCTED IN SUCH A WAY THAT THE PIN BARS ARE IN CONTACT WITH THEM AT ONLY THREE POINTS. THIS MEANS THAT PIN BAR AND SELVEDGE REACH VIRTUALLY THE DESIRED FABRIC TEMPERATURE.
THE CHOICE OF PIN DIAMETER, PIN HEIGHT AND NUMBER OF PINS DEPENDS ON THE PRODUCTION PROJECT AND ON THE TYPE OF FABRIC.

The Complete Solution from one source !
